Connector End View (C1822) - TRANSMISSION CONTROL MODULE (TCM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1822 TRANSMISSION CONTROL MODULE (TCM) BK 14406 part# N/A Not Available

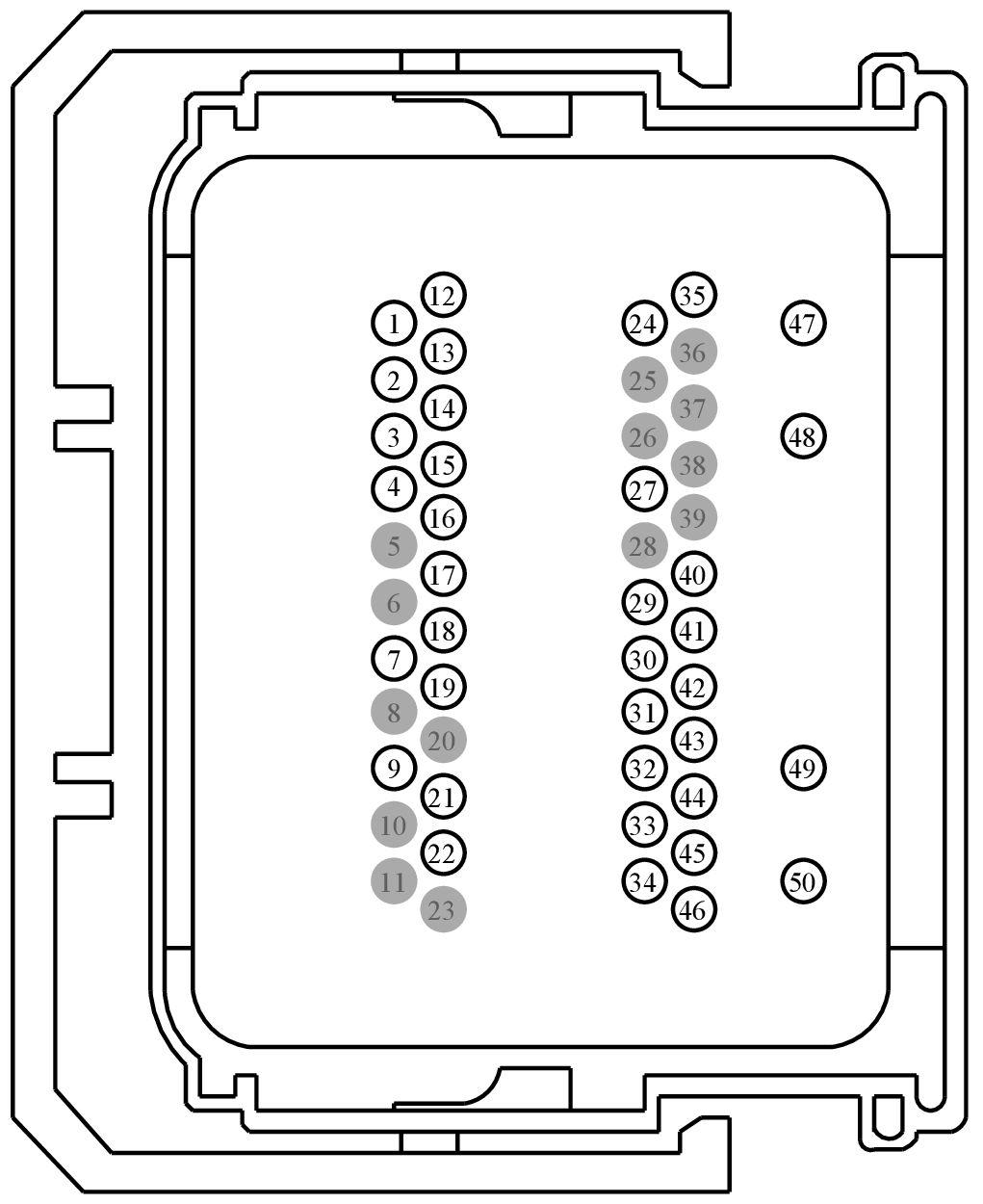

GFDWR82793Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
*BU5T-14474-UA Not Available
7S4T-14474-BB|7S4T-14474-AB Not Available
7S4T-14474-AB DU2Z-14474-BA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) 7S4T-14474-AB
2 CET51 (WH) 20 CTRL MOD. - POWERTRAIN # TORQUE CONVERTER CLUTCH (TCC) 7S4T-14474-AB
3 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) 7S4T-14474-AB
4 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) 7S4T-14474-AB
5 * * Not Used N/A
6 * * Not Used N/A
7 VETB1 (BN-WH) 20 SENSOR - INTERMEDIATE SHAFT SPEED B + 7S4T-14474-AB
7 VET74 (BU) 20 SENSOR - INTERMEDIATE SHAFT SPEED B + 7S4T-14474-AB
8 * * Not Used N/A
9 CET85 (GY-OG) 20 CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP CONTROL 7S4T-14474-AB
10 * * Not Used N/A
11 * * Not Used N/A
12 RE406 (GY-VT) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) 7S4T-14474-AB
13 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) 7S4T-14474-AB
14 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) 7S4T-14474-AB
15 CET50 (WH-OG) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC) 7S4T-14474-AB
16 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID F (SSF) 7S4T-14474-AB
17 LE461 (GY-YE) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2) 7S4T-14474-AB
18 LE425 (BU-BN) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF) 7S4T-14474-AB
19 CET34 (BN-GN) 20 SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS) 7S4T-14474-AB
20 * * Not Used N/A
21 CET44 (BU-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 3 (SS3) 7S4T-14474-AB
22 CET40 (GN-OG) 20 SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN) 7S4T-14474-AB
23 * * Not Used N/A
24 CET49 (BN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2) 7S4T-14474-AB
25 * * Not Used N/A
26 * * Not Used N/A
27 VET33 (WH-OG) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + 7S4T-14474-AB
28 * * Not Used N/A
29 VET86 (YE-GY) 20 CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP MONITOR 7S4T-14474-AB
30 CET43 (GY) 20 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) 7S4T-14474-AB
31 CBB16 (BU-GN) 20 FUSE - 16 OR CIRCUIT BREAKER 7S4T-14474-AB
32 VETB0 (YE-VT) 20 SENSOR - INTERMEDIATE SHAFT SPEED A + 7S4T-14474-AB
32 VET73 (GN-BN) 20 SENSOR - INTERMEDIATE SHAFT SPEED A + 7S4T-14474-AB
33 CET42 (GN-VT) 20 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) 7S4T-14474-AB
34 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) 7S4T-14474-AB
35 CET91 (YE-OG) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE 7S4T-14474-AB
36 * * Not Used N/A
37 * * Not Used N/A
38 * * Not Used N/A
39 * * Not Used N/A
40 VET84 (BN-GN) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1) 7S4T-14474-AB
41 VET81 (YE-GY) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2) 7S4T-14474-AB
42 VET26 (BN-GN) 20 SENSOR - OUTPUT SHAFT SPEED (OSS) 7S4T-14474-AB
43 VDB05 (WH) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW 7S4T-14474-AB
44 VDB04 (BU) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH 7S4T-14474-AB
45 VE349 (BN-YE) 22 CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 LOW 7S4T-14474-BB|7S4T-14474-AB
45 VE475 (WH-VT) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED LOW 7S4T-14474-BB|7S4T-14474-AB
46 VE348 (GN-OG) 22 CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 HIGH 7S4T-14474-BB|7S4T-14474-AB
46 VE474 (BU-GN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED HIGH 7S4T-14474-BB|7S4T-14474-AB
47 CET25 (BU-GN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) *BU5T-14474-UA
48 SBB83 (BU-RD) 18 FUSE - 83 OR CIRCUIT BREAKER 7C3T-14474-DA
49 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) *BU5T-14474-UA
50 GD411 (BK-BU) 18 GROUND - FRAME MIDDLE RIGHT #2 7C3T-14474-DA
