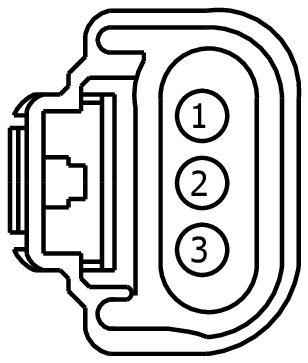

Connector End View (C1799) - BRAKE VACUUM SENSOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1799 | BRAKE VACUUM SENSOR | LT GY | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VCA38 (BN) | 22 | SENSOR - BRAKE VACUUM SIGNAL 1 | 7C3T-14474-RA | ||||
| 2 | RCA37 (WH-BU) | 22 | CTRL MOD. - SENSOR BRAKE VACUUM - | 7C3T-14474-RA | ||||
| 3 | LCA37 (YE-OG) | 22 | CTRL MOD. - SENSOR BRAKE VACUUM + | 7C3T-14474-RA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1500
Service Part Number:
9U2Z-14S411-AC
Gauge:
16
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
- Sensor - Brake Booster Travel
- Sensor - Brake Pressure
- Sensor - Brake Vacuum
- Sensor - Delta Pressure Feedback EGR
- Sensor - Fuel Tank Pressure Transducer
- Sensor - Manifold Absolute Pressure (MAP)
- Sensor - Occupant Classification
