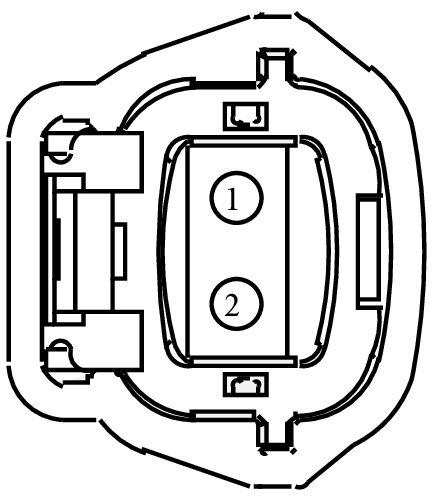

Connector End View (C1771) - INTAKE MANIFOLD RUNNER CONTROL BANK 1 (IMRC1) SOLENOID
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1771 |
INTAKE MANIFOLD RUNNER CONTROL BANK 1 (IMRC1) SOLENOID |
BU |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| DU5T-14474-XA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBK02 (GN) |
20 |
FUSE - 37 OR CIRCUIT BREAKER (VPWR 2) |
DU5T-14474-XA |
| 2 |
CE923 (YE-GY) |
20 |
VALVE - INTAKE MANIFOLD TUNING # MONITOR (IMTVM) |
DU5T-14474-XA |
