Connector End View (C1759B) - HEADLAMP ASSEMBLY RH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1759B | HEADLAMP ASSEMBLY RH | BK | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6R8T-14474-AA | Not Available |

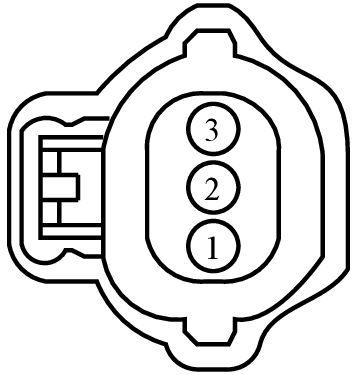

| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB15 (BN-BU) | 22 | FUSE - 15 OR CIRCUIT BREAKER | 6R8T-14474-AA | ||||
| 2 | VLF63 (WH-VT) | 22 | CTRL MOD. - MOTOR HEADLAMP LEVELING SIGNAL | 6R8T-14474-AA | ||||
| 3 | GD131 (BK-GY) | 22 | GROUND - HEADLAMP PANEL/GOR RIGHT | 6R8T-14474-AA | ||||

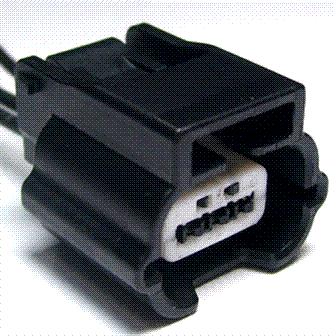

Available Pigtail Kits
Pigtail Kit Part Number WPT-1341
Service Part Number:
CU2Z-14S411-AXA
Gauge:
20
Pin material:
Tin (greased)
Cavities:
3
Vehicle Uses:
- Sensor - Headlamp Leveling
