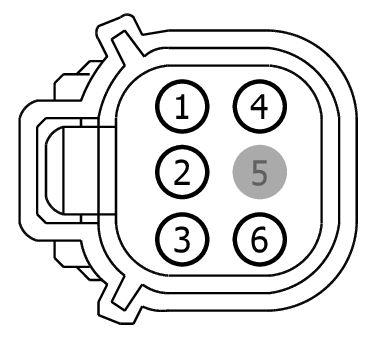

Connector End View (C1759A) - HEADLAMP ASSEMBLY RH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1759A | HEADLAMP ASSEMBLY RH | BK | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLF03 (VT-OG) | 22 | CTRL MOD. - BEAM HIGH RIGHT | BU5T-14474-UA | ||||
| 2 | CLF05 (GY-BU) | 22 | CTRL MOD. - BEAM LOW RIGHT | BU5T-14474-UA | ||||
| 3 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK | BU5T-14474-UA | ||||
| 4 | CLS25 (YE-VT) | 22 | CTRL MOD. - TURN LAMP RIGHT FRONT | BU5T-14474-UA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | GD131 (BK-GY) | 22 | GROUND - HEADLAMP PANEL/GOR RIGHT | BU5T-14474-UA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-971
Service Part Number:
3U2Z-14S411-FEAB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Motor - Engine Cooling Fan
- Motor - Running Board
