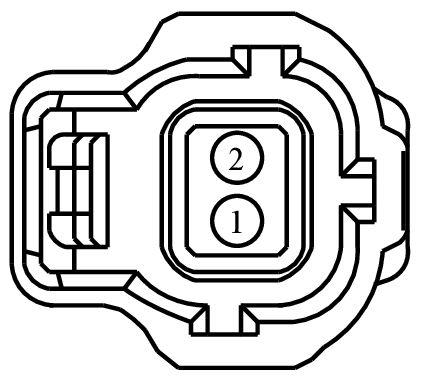

Connector End View (C1741) - INTAKE AIR TEMPERATURE (IAT) SENSOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1741 | INTAKE AIR TEMPERATURE (IAT) SENSOR | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 98AG-14474-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE751 (BN-VT) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | 98AG-14474-AA | ||||
| 2 | RE401 (GN-BU) | 18 | CTRL MOD. - POWERTRAIN # SCREEN GROUNDS - | HIGH OUTPUT | 98AG-14474-AA | |||
| 2 | RE406 (OG) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) | BASE | 98AG-14474-AA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-322
Service Part Number:
3U2Z-14S411-JZA
Gauge:
14
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Resistor - Daytime Running Lamp (DRL)
- Sensor - Air Charge Temperature
- Sensor - Brake Pressure
- Solenoid - Canister Vent
- Switch - Brake Pressure
