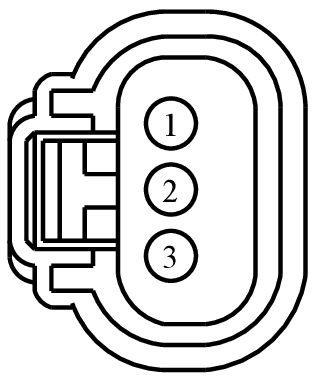

Connector End View (C1728) - CRANKSHAFT POSITION (CKP) SENSOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1728 | CRANKSHAFT POSITION (CKP) SENSOR | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE459 (GY-RD) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3) | 97BG-14474-AHA | ||||
| 2 | VE711 (YE-VT) | 20 | SENSOR - CRANKSHAFT POSITION (CKPP) + | 97BG-14474-AHA | ||||
| 3 | RE135 (GN-YE) | 20 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - | 97BG-14474-AHA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-990
Service Part Number:
8U2Z-14S411-ZB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
3
Vehicle Uses:
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
- Sensor - Fuel Tank Pressure Transducer
- Sensor - Turbine Shaft Speed
- Switch - Fuel Delivery Pressure
