Connector End View (C1681) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1681 | INLINE | LT GY | 12A58112C508 | See Below | ||||

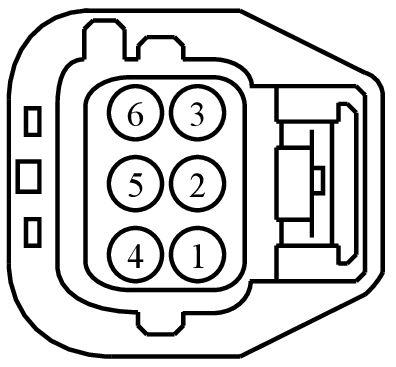

MALE
Harness
12A581

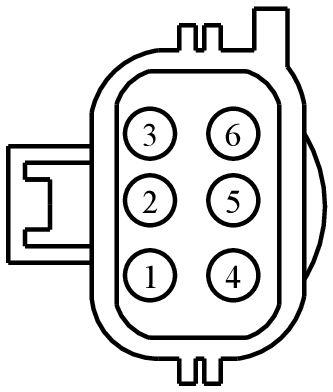

FEMALE
Harness
12C508
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-BFA | EU2Z-14421-FA | 2.8 |
| 7S4T-14474-AA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE243 (GY-VT) | 14 | 97BG-14421-BFA | |||
| 2 | CE244 (BU-BN) | 14 | 97BG-14421-BFA | |||
| 3 | CE245 (VT-WH) | 14 | 97BG-14421-BFA | |||
| 4 | CE246 (YE-BU) | 14 | 97BG-14421-BFA | |||
| 5 | CE247 (GN-WH) | 14 | 97BG-14421-BFA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE243 (GY-VT) | 12 | 7S4T-14474-AA | |||
| 2 | CE244 (BU-BN) | 12 | 7S4T-14474-AA | |||
| 3 | CE245 (VT-WH) | 12 | 7S4T-14474-AA | |||
| 4 | CE246 (YE-BU) | 12 | 7S4T-14474-AA | |||
| 5 | CE247 (GN-WH) | 12 | 7S4T-14474-AA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-163
Service Part Number:
1U2Z-14S411-BUA
Gauge:
14
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Motor - Windshield Wiper
Pigtail Kit Part Number WPT-1495
Service Part Number:
AU2Z-14S411-BKB
Gauge:
14
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Trailer Tow - Vehicle Side
