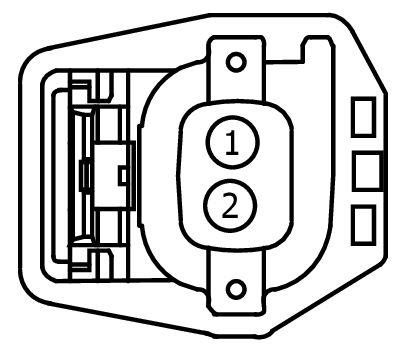

Connector End View (C1669) - FRONT HYDRAULIC SOLENOID VALVE RH

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1669	FRONT HYDRAULIC SOLENOID VALVE RH	BK	3D096	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCD04 (GY-YE)	18	CTRL MOD. - CCD # SOLENOID DAMPER FRONT RIGHT +	97BG-14474-AEA
2	RCD04 (BU-OG)	18	CTRL MOD. - CCD # SOLENOID DAMPER FRONT RIGHT -	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1448

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AUA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Switch - Deck Lid / Lift Gate (ANTI-THEFT)
