Connector End View (C1591) - INLINE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1591	INLINE	BK	12A58114405	See Below

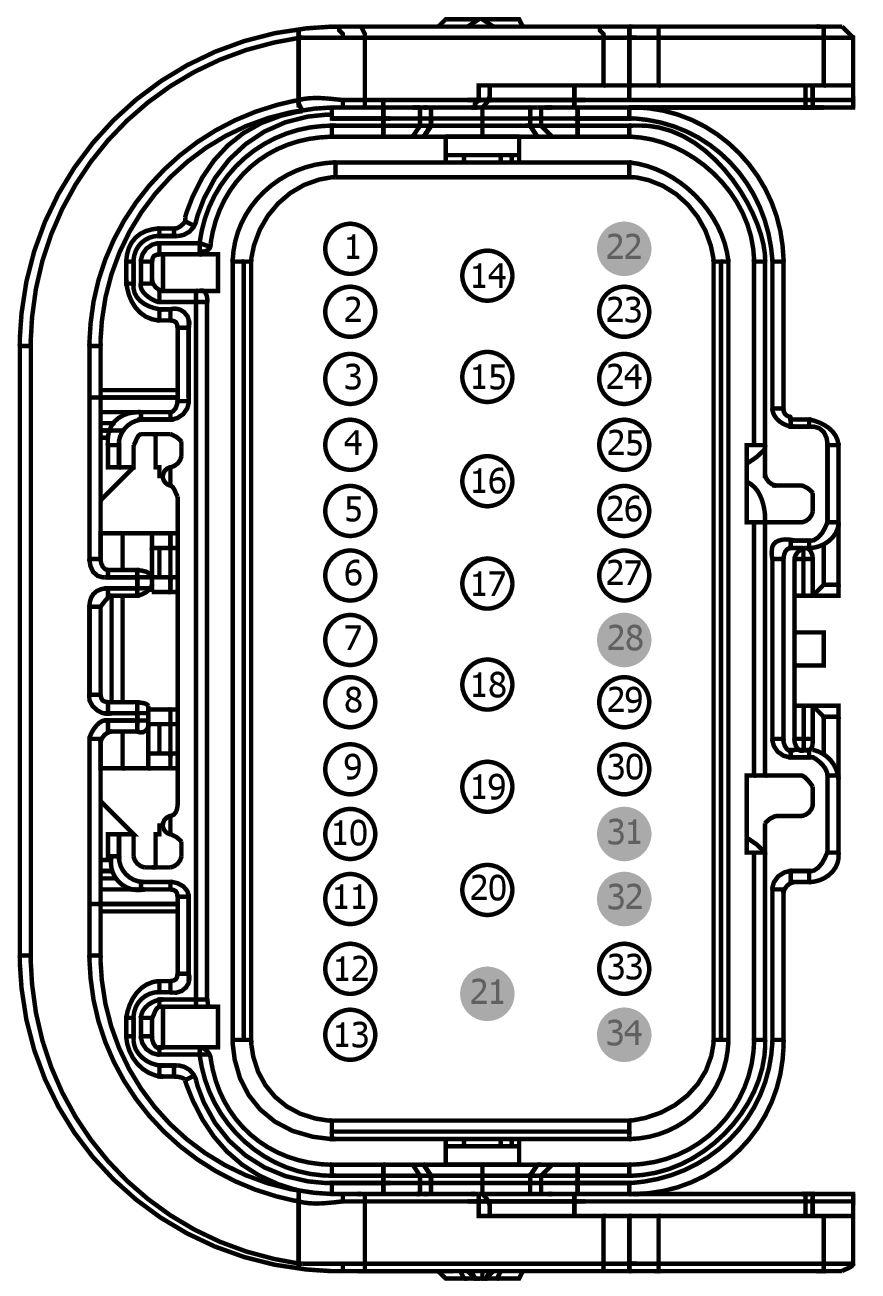

MALE

Harness

12A581

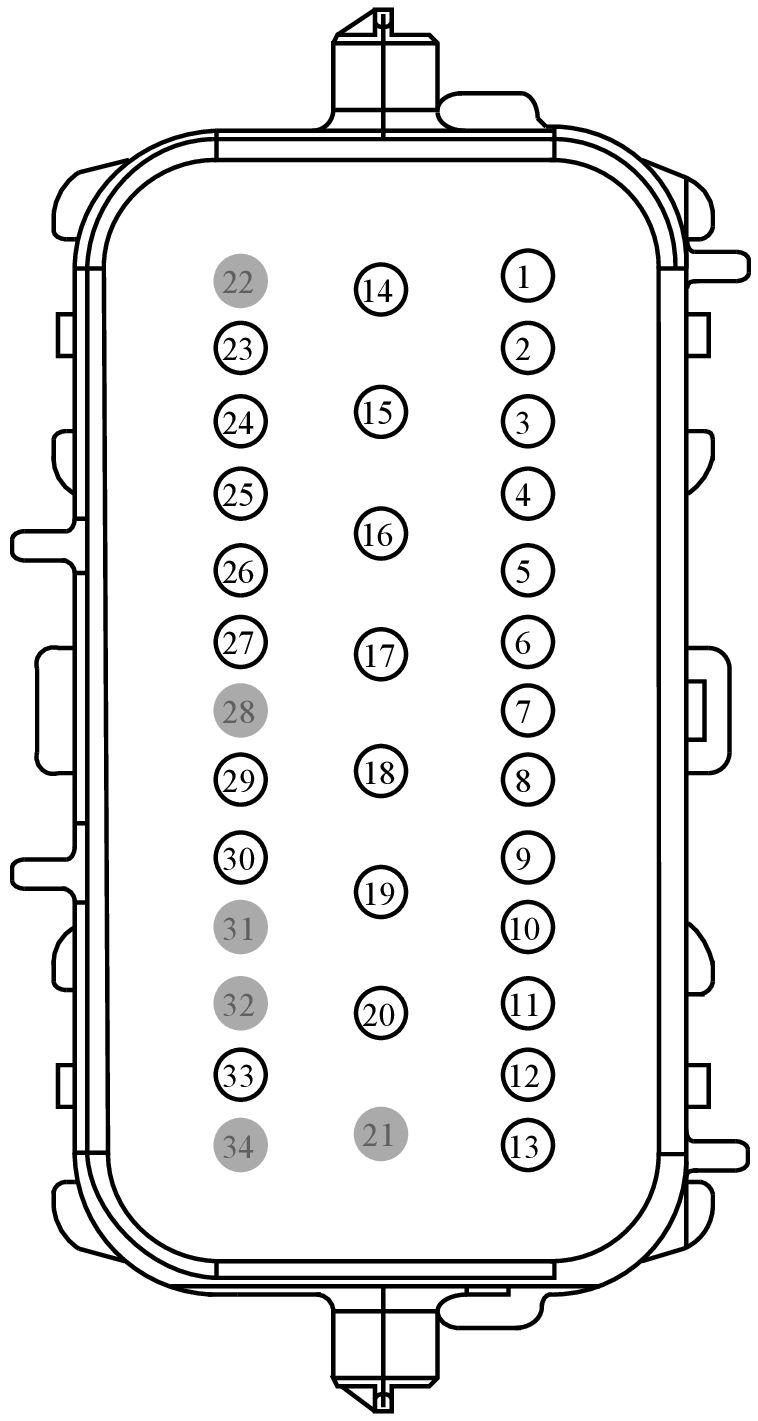

FEMALE

Harness

14405

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2L1T-14421-CA\|BU5T-14421-HA	Not Available
7C3T-14474-DA\|BU5T-14474-UA	Not Available
BU5T-14474-UA\|7C3T-14474-DA	Not Available
XF2T-14474-BA\|F8VB-14474-AA	Not Available
BU5T-14421-HA	EU2Z-14421-CA	1.5
F8VB-14474-AA	EU2Z-14474-AB	2.8
F8VB-14474-BA	EU2Z-14474-AA	2.8
8U5T-14421-CA	EU2Z-14421-DA	2.8
BU5T-14474-UA	DU2Z-14474-DA	1.5
2L1T-14421-CA	EU2Z-14421-CA	1.5
8U5T-14421-BA	EU2Z-14421-DA	2.8
XF2T-14474-BA	EU2Z-14474-AA	2.8

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VE225 (YE-OG)	22	BU5T-14421-HA
2	VE518 (BN-WH)	22	BU5T-14421-HA
3	VCA06 (WH-OG)	22	BU5T-14421-HA
4	RCA20 (BN)	22	BU5T-14421-HA
5	VCA04 (BU-OG)	22	BU5T-14421-HA
6	RCA18 (BN-GN)	22	BU5T-14421-HA
7	CE114 (GN-BU)	22	BU5T-14421-HA
8	CBK02 (GN)	18	2L1T-14421-CA
9	CLS05 (BU-GY)	22	BU5T-14421-HA
10	CETA7 (GY-YE)	22	BU5T-14421-HA
11	CCF31 (YE-BU)	18	2L1T-14421-CA
12	CBK02 (GN)	18	2L1T-14421-CA\|BU5T-14421-HA
12	CBK03 (GY)	22	2L1T-14421-CA\|BU5T-14421-HA
13	CAT03 (GY-BN)	20	BU5T-14421-HA
14	CBK01 (BU)	10	8U5T-14421-BA
15	CBB48 (GY-YE)	12	8U5T-14421-CA
16	CAT11 (BN)	14	8U5T-14421-CA
17	CCB18 (YE-GY)	12	8U5T-14421-CA
18	CCB19 (GN-BN)	12	8U5T-14421-CA
19	CCB16 (WH-VT)	12	8U5T-14421-CA
20	CCB17 (BU-GN)	12	8U5T-14421-CA
21	*	*	N/A
22	*	*	N/A
23	CE420 (GY-VT)	22	BU5T-14421-HA
24	VE922 (VT-GN)	22	BU5T-14421-HA
25	RE230 (WH-VT)	22	BU5T-14421-HA
25	RE407 (YE-VT)	22	BU5T-14421-HA
26	LE230 (BN-BU)	22	BU5T-14421-HA
26	VE823 (BU-BN)	22	BU5T-14421-HA
27	RE407 (YE-VT)	22	BU5T-14421-HA
28	*	*	N/A
29	CLS64 (GN-VT)	22	BU5T-14421-HA
30	CLS60 (BU-GN)	22	BU5T-14421-HA
31	*	*	N/A
32	*	*	N/A
33	CBBB3 (WH-BN)	22	BU5T-14421-HA

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VE225 (YE-OG)	22	BU5T-14474-UA
2	VE518 (BN-WH)	22	BU5T-14474-UA
3	VCA06 (WH-OG)	20	BU5T-14474-UA
4	RCA20 (BN)	20	BU5T-14474-UA
5	VCA04 (BU-OG)	20	BU5T-14474-UA
6	RCA18 (BN-GN)	20	BU5T-14474-UA
7	CE114 (GN-BU)	20	BU5T-14474-UA
8	CBK02 (GN)	18	7C3T-14474-DA
9	CLS05 (BU-GY)	22	BU5T-14474-UA
10	CETA7 (GY-YE)	20	BU5T-14474-UA
11	CCF31 (YE-BU)	18	7C3T-14474-DA
12	CBK02 (GN)	16	7C3T-14474-DA\|BU5T-14474-UA
12	CBK03 (GY)	20	7C3T-14474-DA\|BU5T-14474-UA
13	CAT03 (GY-BN)	22	BU5T-14474-UA
14	CBK01 (BU)	10	XF2T-14474-BA\|F8VB-14474-AA
14	CBK01 (BU)	12	XF2T-14474-BA\|F8VB-14474-AA
15	CBB48 (GY-YE)	12	F8VB-14474-AA
16	CAT11 (BN)	16	F8VB-14474-BA
17	CCB18 (YE-GY)	10	XF2T-14474-BA
18	CCB19 (GN-BN)	10	XF2T-14474-BA
19	CCB16 (WH-VT)	10	XF2T-14474-BA
20	CCB17 (BU-GN)	12	F8VB-14474-AA
21	*	*	N/A
22	*	*	N/A
23	CE420 (GY-VT)	20	BU5T-14474-UA
24	VE922 (VT-GN)	22	BU5T-14474-UA
25	RE407 (YE-VT)	22	BU5T-14474-UA
26	LE230 (BN-BU)	22	BU5T-14474-UA\|7C3T-14474-DA
26	VE823 (BU-BN)	18	BU5T-14474-UA\|7C3T-14474-DA
27	RE407 (YE-VT)	18	7C3T-14474-DA
28	*	*	N/A
29	CLS64 (GN-VT)	22	BU5T-14474-UA
30	CLS60 (BU-GN)	22	BU5T-14474-UA
31	*	*	N/A
32	*	*	N/A
33	CBBB3 (WH-BN)	22	BU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1606

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-SA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline

Pigtail Kit Part Number WPT-1607

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-TA

Gauge:

14 16

Pin material:

Tin (Greased) & Silver

Cavities:

Vehicle Uses:

Connector - Inline
