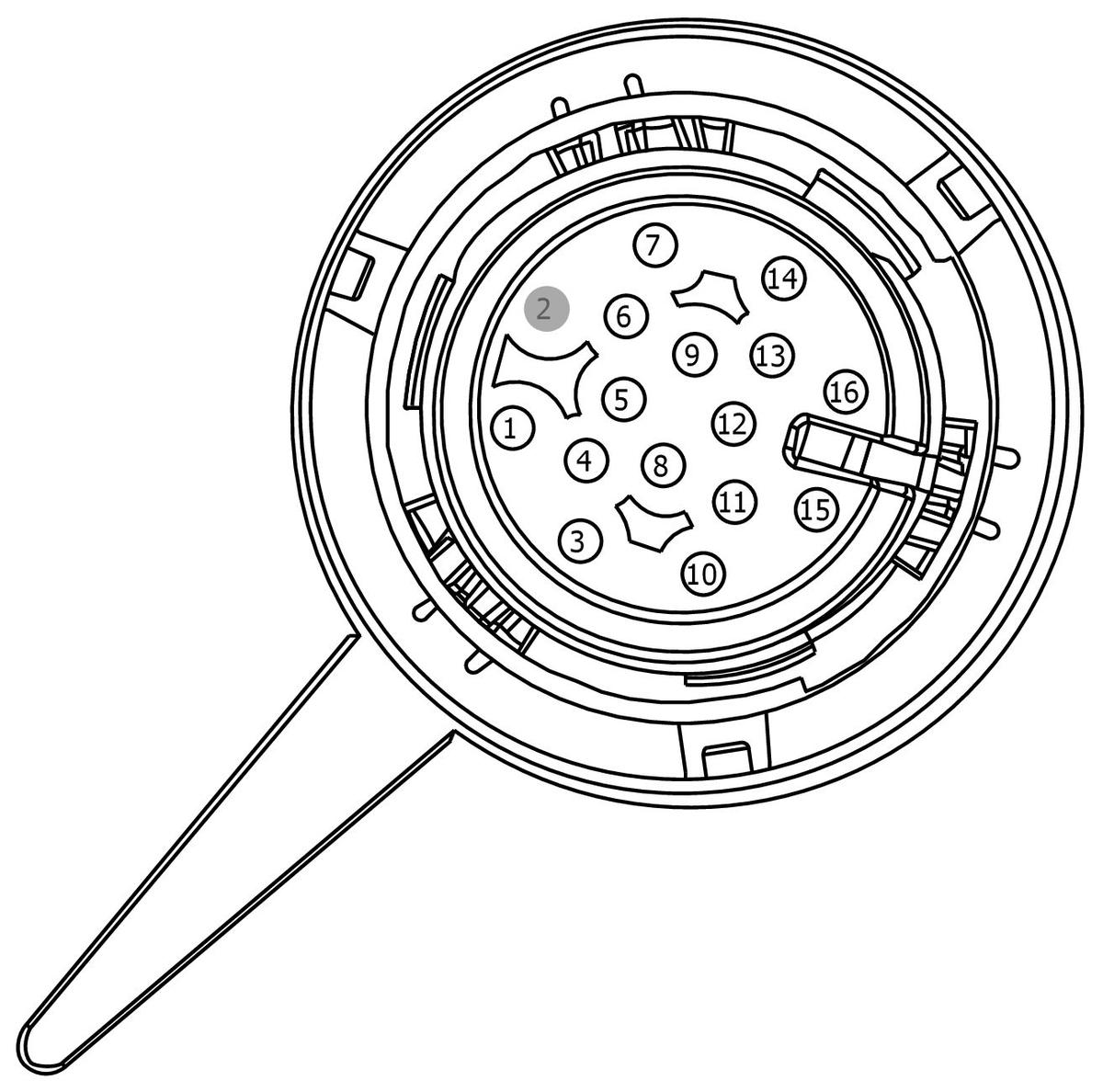

Connector End View (C1575) - 6R80 TRANSMISSION

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1575	6R80 TRANSMISSION	BK	15525	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2R8T-14474-BA	Not Available
2R8T-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VET33 (WH-OG)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) +	2R8T-14474-AA
2	*	*	Not Used	N/A
3	CET10 (BU-GY)	20	CTRL MOD. - POWERTRAIN # TORQUE CONVERTER CLUTCH (TCC)	2R8T-14474-AA
4	VET32 (VT-OG)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P)	2R8T-14474-AA
5	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	2R8T-14474-AA
6	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	2R8T-14474-AA
7	CET25 (BU-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	2R8T-14474-BA
8	CET16 (WH-BU)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE)	2R8T-14474-AA
9	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA)	2R8T-14474-AA
10	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD)	2R8T-14474-AA
11	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	2R8T-14474-AA
12	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # POWER SUPPLY SENSORS	2R8T-14474-AA
13	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC)	2R8T-14474-AA
14	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB)	2R8T-14474-AA
15	RET04 (YE-OG)	20	CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS)	2R8T-14474-AA
16	CET09 (YE-VT)	20	CTRL MOD. - POWERTRAIN # LINE PRESSURE CONTROL (LPC)	2R8T-14474-AA

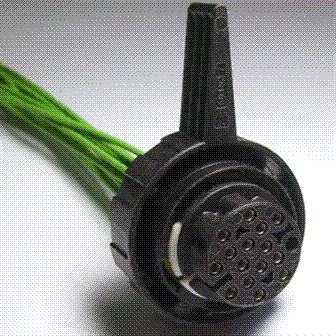

Available Pigtail Kits

Pigtail Kit Part Number WPT-1390

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-HA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Transmission - Bulkhead
