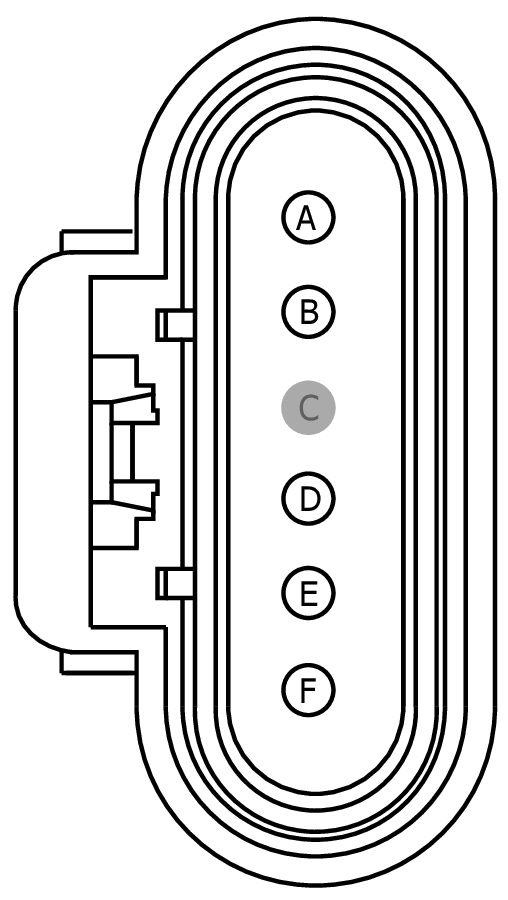

Connector End View (C1554) - COOLING FAN
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1554 |
COOLING FAN |
BK |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 2S65-14474-BA |
Not Available |
| 2S65-14474-AA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| A |
CBK03 (GY) |
18 |
FUSE - 36 OR CIRCUIT BREAKER (VPWR 3) |
2S65-14474-BA |
| B |
LE111 (VT-GN) |
18 |
CTRL MOD. - POWERTRAIN # POWER SUPPLY SENSORS |
2S65-14474-BA |
| C |
* |
* |
Not Used |
N/A |
| D |
VEC10 (GY-YE) |
20 |
SENSOR - FAN SPEED (FSS) |
2S65-14474-AA |
| E |
GD108 (BK-VT) |
18 |
GROUND - CHASSIS / BATTERY |
2S65-14474-BA |
| F |
VEC03 (WH-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL VARIABLE (FC-V) |
2S65-14474-AA |
