Connector End View (C1551T) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1551T POWERTRAIN CONTROL MODULE (PCM) BK 15525 part# N/A Not Available

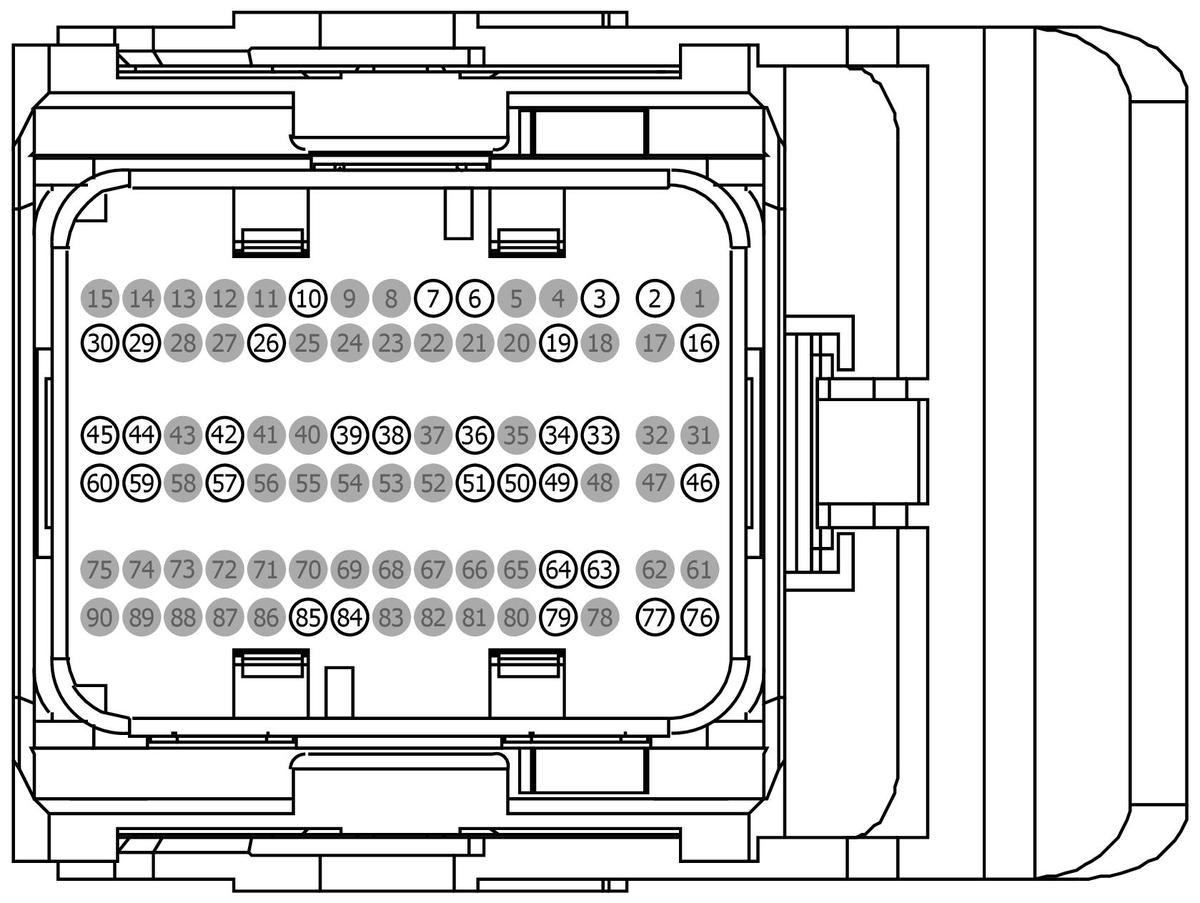

GFDWR82672Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BB Not Available
GU5T-14474-CA DU2Z-14474-BA 0.64
BU5T-14474-AB DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 CET25 (BU-GN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) GU5T-14474-CA
3 CET16 (WH-BU) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) BU5T-14474-AB
4 * * Not Used N/A
5 * * Not Used N/A
6 CET85 (GY-OG) 20 CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP CONTROL BU5T-14474-AB
7 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-AB
8 * * Not Used N/A
9 * * Not Used N/A
10 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-BB
11 * * Not Used N/A
12 * * Not Used N/A
13 * * Not Used N/A
14 * * Not Used N/A
15 * * Not Used N/A
16 CE234 (BU-WH) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) GU5T-14474-CA
17 * * Not Used N/A
18 * * Not Used N/A
19 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) BU5T-14474-AB
20 * * Not Used N/A
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 VE733 (WH) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BB
27 * * Not Used N/A
28 * * Not Used N/A
29 LE451 (BN-YE) 20 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT BU5T-14474-AB
30 LE450 (WH) 20 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT BU5T-14474-AB
31 * * Not Used N/A
32 * * Not Used N/A
33 CETA7 (GY-YE) 22 CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE - TRANSMISSION HEATING (ECBV_TH) BU5T-14474-AB
34 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) BU5T-14474-AB
35 * * Not Used N/A
36 VET32 (VT-OG) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) BU5T-14474-AB
37 * * Not Used N/A
38 VET33 (WH-OG) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + BU5T-14474-AB
39 VET86 (YE-GY) 20 CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP MONITOR BU5T-14474-AB
40 * * Not Used N/A
41 * * Not Used N/A
42 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) BU5T-14474-AB
43 * * Not Used N/A
44 LE448 (GY-BU) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO BU5T-14474-AB
45 LE449 (VT-GN) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO BU5T-14474-AB
46 CE236 (GY-VT) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. GU5T-14474-CA
47 * * Not Used N/A
48 * * Not Used N/A
49 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) BU5T-14474-AB
50 LE111 (VT-GN) 20 CTRL MOD. - POWERTRAIN # POWER SUPPLY SENSORS BU5T-14474-AB
51 RET04 (YE-OG) 20 CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) BU5T-14474-AB
52 * * Not Used N/A
53 * * Not Used N/A
54 * * Not Used N/A
55 * * Not Used N/A
56 * * Not Used N/A
57 RE405 (GN-WH) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) BU5T-14474-AB
58 * * Not Used N/A
59 VE826 (YE-GN) 20 SENSOR - UNIVERSAL HEATED OXYGEN BU5T-14474-AB
60 VE827 (WH-GN) 20 SENSOR - UNIVERSAL HEATED OXYGEN BU5T-14474-AB
61 * * Not Used N/A
62 * * Not Used N/A
63 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # LINE PRESSURE CONTROL (LPC) BU5T-14474-AB
64 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) BU5T-14474-AB
65 * * Not Used N/A
66 * * Not Used N/A
67 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 * * Not Used N/A
73 * * Not Used N/A
74 * * Not Used N/A
75 * * Not Used N/A
76 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. GU5T-14474-CA
77 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) GU5T-14474-CA
78 * * Not Used N/A
79 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # TORQUE CONVERTER CLUTCH (TCC) BU5T-14474-AB
80 * * Not Used N/A
81 * * Not Used N/A
82 * * Not Used N/A
83 * * Not Used N/A
84 RE731 (WH-OG) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) BU5T-14474-BB
85 RE733 (GN) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BB
86 * * Not Used N/A
87 * * Not Used N/A
88 * * Not Used N/A
89 * * Not Used N/A
90 * * Not Used N/A
