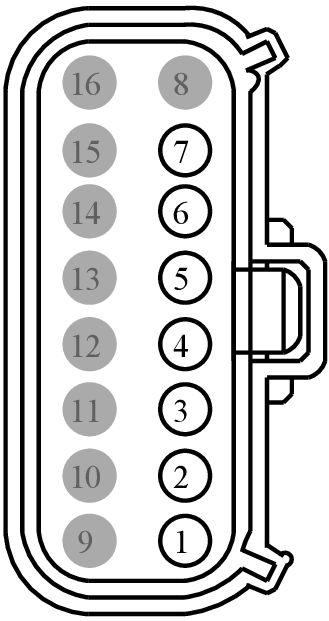

Connector End View (C1509) - HEADLAMP ASSEMBLY LH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1509 | HEADLAMP ASSEMBLY LH | BK | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| JU5T-14474-AAA | Not Available | |
| JU5T-14474-ABA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLS21 (BU-GN) | 22 | CTRL MOD. - TURN LAMP LEFT FRONT | JU5T-14474-AAA | ||||
| 2 | CLS56 (YE-GN) | 22 | LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT | JU5T-14474-AAA | ||||
| 3 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK | JU5T-14474-AAA | ||||
| 4 | CLF61 (GY-BU) | 22 | CTRL MOD. - DAYTIME RUNNING LIGHT LEFT | JU5T-14474-AAA | ||||
| 5 | CLF04 (BN-BU) | 16 | CTRL MOD. - BEAM LOW LEFT | JU5T-14474-ABA | ||||
| 6 | CLF02 (GY-BN) | 16 | CTRL MOD. - BEAM HIGH LEFT | JU5T-14474-ABA | ||||
| 7 | GD129 (BK-YE) | 20 | GROUND - HEADLAMP PANEL/GOR LEFT | JU5T-14474-AAA | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1279
Service Part Number:
CU2Z-14S411-ADA
Gauge:
16
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
- Mating Connector WPT-1404
- Module - Heated Seat (driver)
- Module - Transfer Case Shift Control
