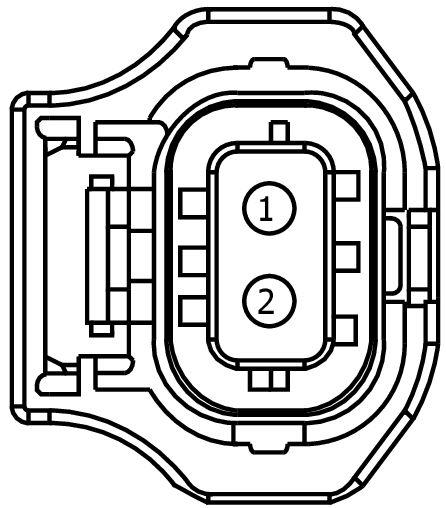

Connector End View (C1458) - OIL PRESSURE CONTROL SOLENOID
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1458 | OIL PRESSURE CONTROL SOLENOID | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-SB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK03 (GY) | 18 | FUSE - 36 OR CIRCUIT BREAKER (VPWR 3) | EU5T-14474-SB | ||||
| 2 | VE821 (WH-VT) | 18 | SENSOR - VACUUM RESERVOIR PRESSURE (VRP) | EU5T-14474-SB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1506
Service Part Number:
AU2Z-14S411-DB
Gauge:
14
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Actuator - Door Lock
- Fuel Injector
- Injector - UREA
- Sensor - Fuel Rail Pressure
- Solenoid - Engine Variable Timing
- Solenoid - Fuel Volume Regulator Control
- Valve - Fuel Metering
- Valve - Heated PCV
- Valve - Vapor Management
