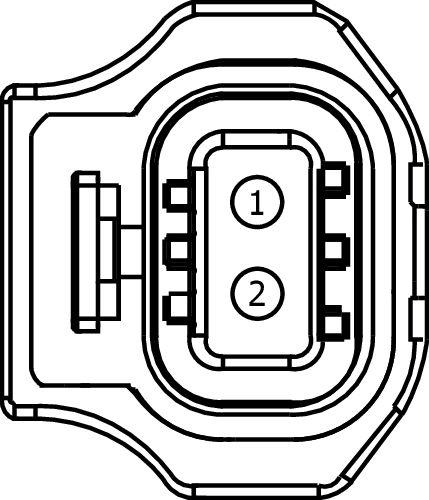

Connector End View (C1420) - FUEL INJECTOR 5
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1420 |
FUEL INJECTOR 5 |
BK |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| EU5T-14474-SB |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RE209 (WH-GN) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) - |
EU5T-14474-SB |
| 2 |
CE209 (BN) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) + |
EU5T-14474-SB |
