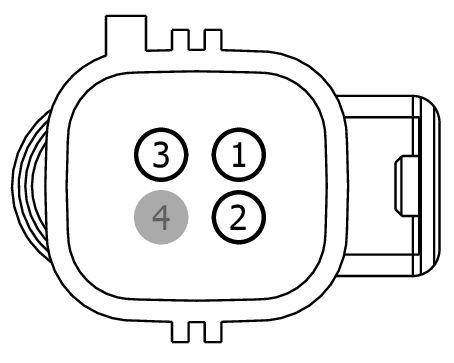

Connector End View (C1414) - GLOW PLUG BANK RH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1414 |
GLOW PLUG BANK RH |
BK |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 1F1T-14421-JA |
EU2Z-14421-FA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CE243 (GY-VT) |
12 |
CTRL MOD. - GLOW PLUG 1 OR ELECTRONIC COLD START |
1F1T-14421-JA |
| 2 |
CE244 (BU-BN) |
12 |
CTRL MOD. - GLOW PLUG 2 OR ELECTRONIC COLD START |
1F1T-14421-JA |
| 3 |
CE245 (VT-WH) |
12 |
CTRL MOD. - GLOW PLUG 3 OR ELECTRONIC COLD START |
1F1T-14421-JA |
| 4 |
* |
* |
Not Used |
N/A |
