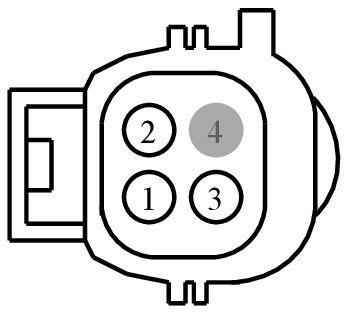

Connector End View (C1413) - GLOW PLUG BANK LH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1413 | GLOW PLUG BANK LH | DK GY | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1F1T-14421-JA | EU2Z-14421-FA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE246 (YE-BU) | 12 | CTRL MOD. - GLOW PLUG 4 OR ELECTRONIC COLD START | 1F1T-14421-JA | ||||
| 2 | CE247 (GN-WH) | 12 | CTRL MOD. - GLOW PLUG 5 | 1F1T-14421-JA | ||||
| 3 | CE248 (WH-BN) | 12 | CTRL MOD. - GLOW PLUG 6 | 1F1T-14421-JA | ||||
| 4 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1012
Service Part Number:
9U2Z-14S411-PA
Gauge:
14
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Motor - Windshield Wiper
- Radio - Amplifier
