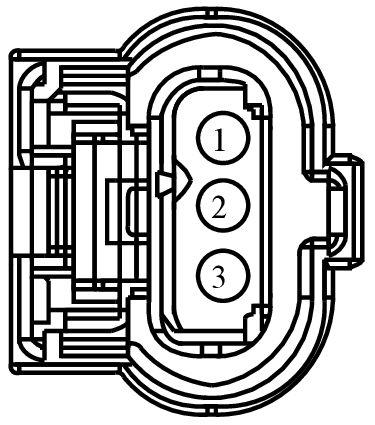

Connector End View (C1360) - FUEL RAIL PRESSURE (FRP) SENSOR

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1360	FUEL RAIL PRESSURE (FRP) SENSOR	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE329 (BU)	18	CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) +	EU5T-14474-GAB
2	RE329 (WH-BN)	18	CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) -	EU5T-14474-GAB
3	VE727 (BU-BN)	18	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1308

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AVA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Coil - Ignition
Sensor - Fuel Low Pressure
