Connector End View (C1291) - INTEGRATED WHEEL END (IWE) SOLENOID

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1291	INTEGRATED WHEEL END (IWE) SOLENOID	BK	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB29 (GY-RD)	12	FUSE - 29 OR CIRCUIT BREAKER	XL3T-14474-HA
2	CCF05 (BN-BU)	12	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTEGRATED WHEEL ENDS (4WDIWE)	XL3T-14474-HA

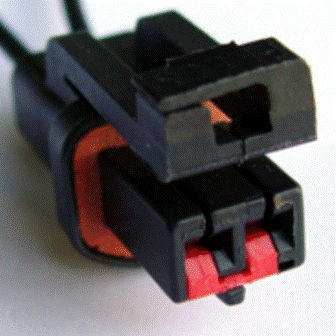

Available Pigtail Kits

Pigtail Kit Part Number WPT-441

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MNA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Solenoid - Canister Vent
Solenoid - Electronic Automatic Temperature Control (EATC)
Solenoid - Pulse Vacuum
Switch - Courtesy Lamp
Switch - Deck Lid / Lift Gate Ajar
Switch - Door Ajar / Interior Lamp
Switch - Windshield Wiper / Washer
