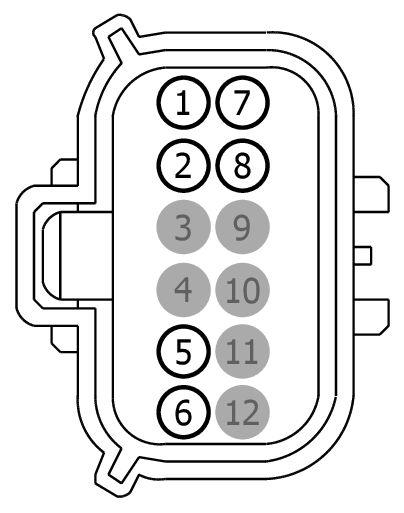

Connector End View (C1273B) - GLOW PLUG CONTROL MODULE (GPCM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1273B | GLOW PLUG CONTROL MODULE (GPCM) | BK | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-EA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE243 (GY-VT) | 14 | CTRL MOD. - GLOW PLUG 1 OR ELECTRONIC COLD START | 7C3T-14474-EA | ||||
| 2 | CE244 (BU-BN) | 14 | CTRL MOD. - GLOW PLUG 2 OR ELECTRONIC COLD START | 7C3T-14474-EA | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CE245 (VT-WH) | 14 | CTRL MOD. - GLOW PLUG 3 OR ELECTRONIC COLD START | 7C3T-14474-EA | ||||
| 6 | CE246 (YE-BU) | 14 | CTRL MOD. - GLOW PLUG 4 OR ELECTRONIC COLD START | 7C3T-14474-EA | ||||
| 7 | CE247 (GN-WH) | 14 | CTRL MOD. - GLOW PLUG 5 | 7C3T-14474-EA | ||||
| 8 | CE248 (WH-BN) | 14 | CTRL MOD. - GLOW PLUG 6 | 7C3T-14474-EA | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
