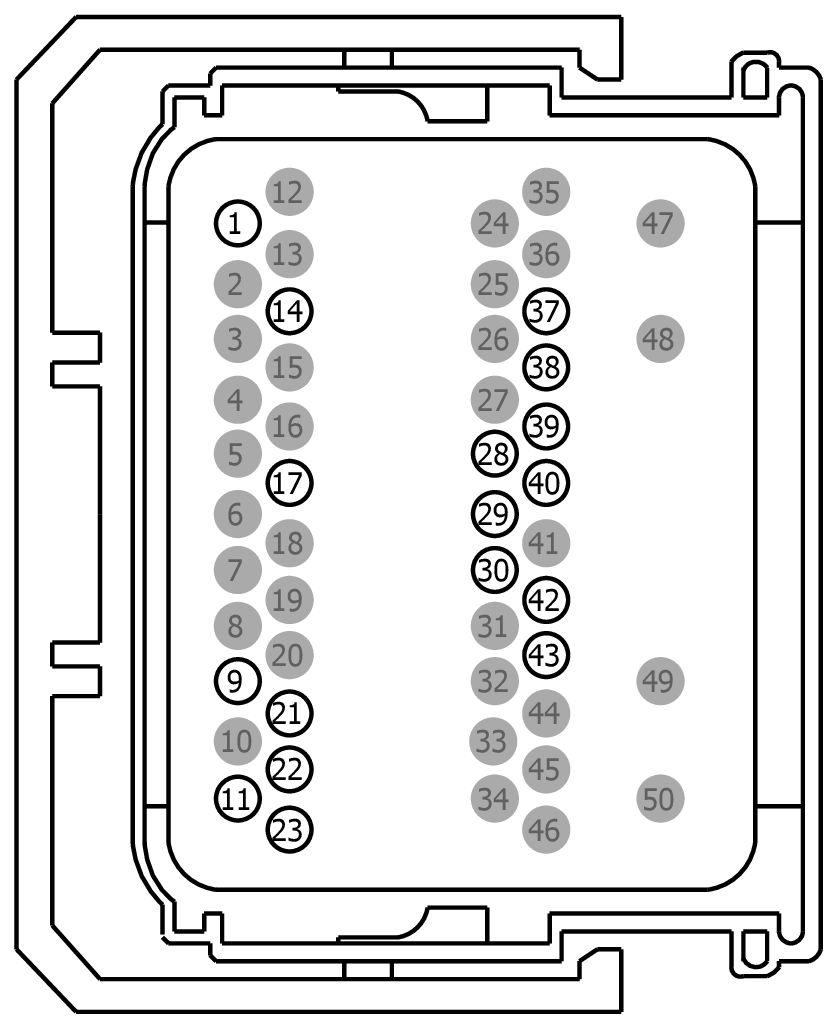

Connector End View (C1233T) - POWERTRAIN CONTROL MODULE (PCM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1233T |
POWERTRAIN CONTROL MODULE (PCM) |
BK |
15525 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| *7S4T-14474-BB |
Not Available |
| 7S4T-14474-AB |
DU2Z-14474-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
LE461 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2) |
7S4T-14474-AB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
VE723 (GN-VT) |
20 |
SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) + |
7S4T-14474-AB |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
LE425 (BU-BN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF) |
7S4T-14474-AB |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
VE350 (GY) |
20 |
CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE MINUS (RDMV-) |
7S4T-14474-AB |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
CE170 (WH-BU) |
22 |
CTRL MOD. - POWERTRAIN # ENGINE START SIGNAL |
*7S4T-14474-BB |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
VE351 (VT-OG) |
20 |
CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE PLUS (RDMV+) |
7S4T-14474-AB |
| 22 |
CE328 (YE-VT) |
22 |
CTRL MOD. - POWERTRAIN # POS. CRANKCASE VENTIL. HEATER FITTING (PCVHF) |
*7S4T-14474-BB |
| 23 |
CE354 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) PWR |
7S4T-14474-AB |
| 24 |
* |
* |
Not Used |
N/A |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
VE747 (VT-OG) |
20 |
SENSOR - DIESEL PARTICULATE FILTER TEMPERATURE INLET (#1) (DPFT1) + |
7S4T-14474-AB |
| 29 |
VE529 (GN-OG) |
20 |
MONITOR - REDUCTANT PUMP |
7S4T-14474-AB |
| 30 |
VE722 (BN) |
20 |
SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT) |
7S4T-14474-AB |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
* |
* |
Not Used |
N/A |
| 37 |
VE776 (BN-WH) |
20 |
SENSOR - EXHAUST GAS TEMPERATURE 4 (EGT4) + |
7S4T-14474-AB |
| 38 |
VE838 (VT-GY) |
20 |
SENSOR - REDUCTANT TANK TEMPERATURE (TRATS) + |
7S4T-14474-AB |
| 39 |
VE771 (BN-VT) |
20 |
SENSOR - EXHAUST GAS TEMPERATURE 3 (EGT3) + |
7S4T-14474-AB |
| 40 |
VE712 (BU-GY) |
22 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
*7S4T-14474-BB |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
RE406 (GY-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) |
7S4T-14474-AB |
| 43 |
RE406 (GY) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) |
7S4T-14474-AB |
| 44 |
* |
* |
Not Used |
N/A |
| 45 |
* |
* |
Not Used |
N/A |
| 46 |
* |
* |
Not Used |
N/A |
| 47 |
* |
* |
Not Used |
N/A |
| 48 |
* |
* |
Not Used |
N/A |
| 49 |
* |
* |
Not Used |
N/A |
| 50 |
* |
* |
Not Used |
N/A |
