Connector End View (C1222) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1222 | INLINE | BK | 14B48512C508 | See Below | ||||

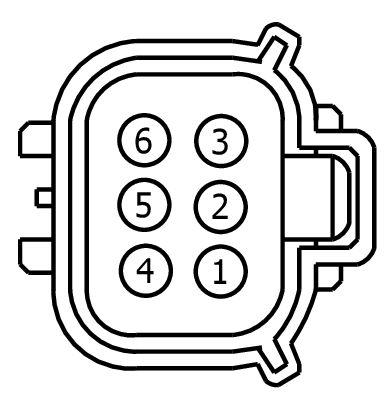

MALE
Harness
14B485

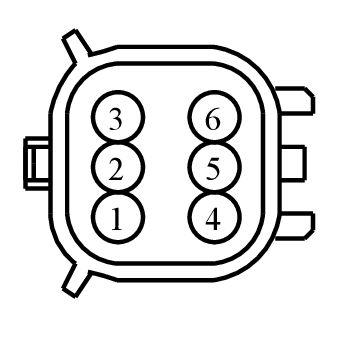

FEMALE
Harness
12C508
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RE207 (GN-VT) | 16 | 2L1T-14421-CA | |||
| 2 | CE207 (VT-GY) | 16 | 2L1T-14421-CA | |||
| 3 | RE206 (BU-OG) | 16 | 2L1T-14421-CA | |||
| 4 | CE206 (GY-YE) | 16 | 2L1T-14421-CA | |||
| 5 | RE205 (YE-BU) | 16 | 2L1T-14421-CA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RE207 (GN-VT) | 16 | 7C3T-14474-DA | |||
| 2 | CE207 (VT-GY) | 16 | 7C3T-14474-DA | |||
| 3 | RE206 (BU-OG) | 16 | 7C3T-14474-DA | |||
| 4 | CE206 (GY-YE) | 16 | 7C3T-14474-DA | |||
| 5 | RE205 (YE-BU) | 16 | 7C3T-14474-DA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1426
Service Part Number:
FU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
- Lamp - Park/Turn/Stop
- Sensor - Coolant Temperature
- Sensor - O2 (HEGO/ EGO)
