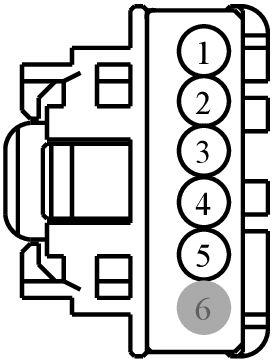

Connector End View (C931) - FRONT INTERIOR/MAP LAMPS ASSEMBLY

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C931	FRONT INTERIOR/MAP LAMPS ASSEMBLY	BK	14334	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64
9U5T-14474-MA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	9U5T-14474-LA
2	GD313 (BK-GN)	20	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT	9U5T-14474-MA
3	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-LA
4	VLN33 (GY-VT)	22	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	9U5T-14474-LA
5	GD348 (BK-YE)	22	GROUND - PILLAR C OR QUARTER PANEL RIGHT	9U5T-14474-LA
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1249

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BYAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Dome
Lamp - Storage Compartment - Cargo
Motor - Heater A/C Mode Door
Motor - Heater/AC Blend Door
Motor - Heater/AC Inlet Door
Switch - Hazard Warning
Switch - Heated Seat
Switch - Heater A/C Blower (Rear)
Switch - Speed Control
