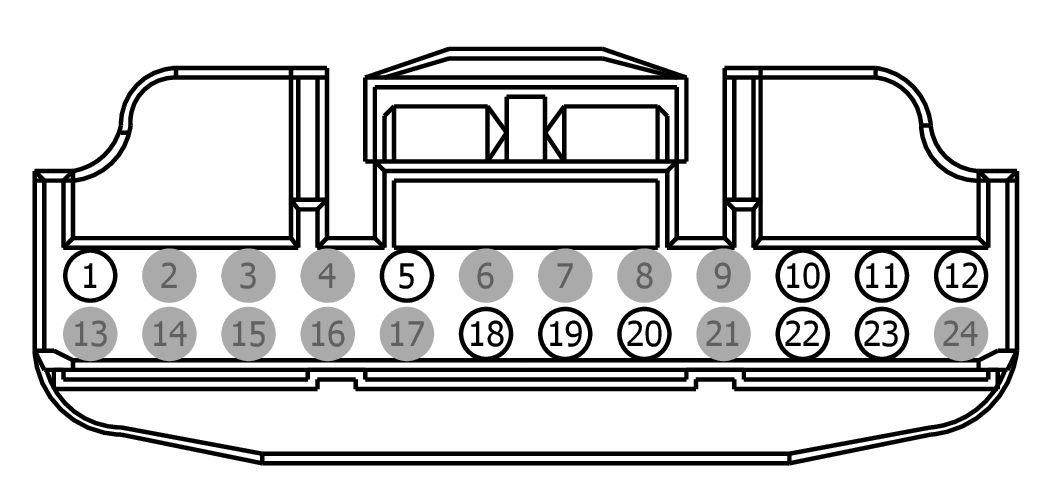

Connector End View (C930) - OVERHEAD CONSOLE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C930 |
OVERHEAD CONSOLE |
NA |
14334 |
part# N/A |
Not Available |
Pin: 12 - CLN09(YE-GN)-RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING), Gauge 22
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 5M5T-14474-AA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD348 (BK-YE) |
22 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
5M5T-14474-AA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
CLN70 (BN-VT) |
22 |
SWITCH - OVERHEAD CONSOLE # EXTERNAL CONTROL 1 |
5M5T-14474-AA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
5M5T-14474-AA |
| 11 |
VLN33 (GY-VT) |
22 |
CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) |
5M5T-14474-AA |
| 12 |
CLN09 (YE-GN) |
22 |
RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
5M5T-14474-AA |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
CPR31 (VT-BN) |
22 |
SWITCH - MOON/SUN ROOF OPEN |
5M5T-14474-AA |
| 19 |
CPR38 (WH-BU) |
22 |
SWITCH - MOON/SUN ROOF TILT |
5M5T-14474-AA |
| 20 |
CPR40 (YE-OG) |
22 |
SWITCH - MOON/SUN ROOF CLOSE |
5M5T-14474-AA |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
CPR86 (GY-BN) |
22 |
SWITCH - SHADE MOON/SUN ROOF OPEN |
5M5T-14474-AA |
| 23 |
CPR85 (GN-WH) |
22 |
SWITCH - SHADE MOON/SUN ROOF CLOSE |
5M5T-14474-AA |
| 24 |
* |
* |
Not Used |
N/A |
