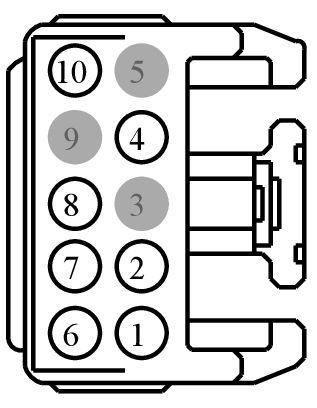

Connector End View (C921) - ROOF OPENING PANEL MOTOR ASSEMBLIES
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C921 | ROOF OPENING PANEL MOTOR ASSEMBLIES | LT GY | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-CA | Not Available | |
| AU5T-14474-DA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD348 (BK-YE) | 18 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | AU5T-14474-CA | ||||
| 2 | CPR31 (VT-BN) | 22 | SWITCH - MOON/SUN ROOF OPEN | AU5T-14474-DA | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | CPR40 (YE-OG) | 22 | SWITCH - MOON/SUN ROOF CLOSE | AU5T-14474-DA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | SBP27 (BU-RD) | 16 | FUSE - 27 OR CIRCUIT BREAKER | AU5T-14474-CA | ||||
| 7 | CBP23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER | AU5T-14474-DA | ||||
| 8 | CPR38 (WH-BU) | 22 | SWITCH - MOON/SUN ROOF TILT | AU5T-14474-DA | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | VDB03 (GY-BN) | 22 | CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) | AU5T-14474-DA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1037
Service Part Number:
1U2Z-14S411-BLB
Gauge:
14
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Inverter - DC to AC
- Module - Anti-theft
- Module - Heated Seat
- Module - Power Moonroof
- Radio - Amplifier
- Solenoid - Brake Shift Park Interlock
- Switch - Gear Shift Select/Neutral Safety
- Switch - Headlamp
- Switch - Heated Seat
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Overdrive Cancel
- Switch - Turn Signal
- Switch - Windshield Wiper / Washer
