Connector End View (C919) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C919 | INLINE | GY | 14334PIA | See Below | ||||

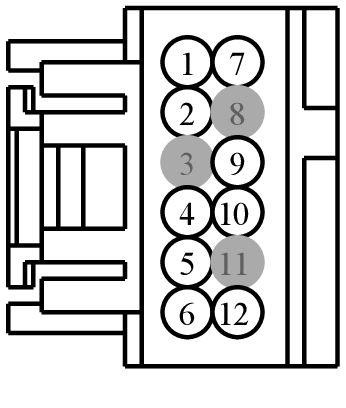

MALE
Harness
14334

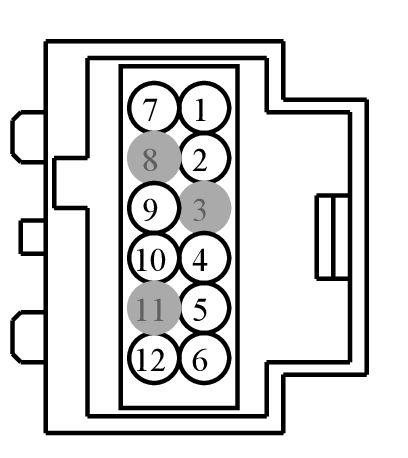

FEMALE
Harness
PIA
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14421-CB | EU2Z-14421-AA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS10 (GN-BN) | 22 | DU5T-14421-CB | |||
| 2 | CBP36 (BU-BN) | 22 | DU5T-14421-CB | |||
| 3 | * | * | N/A | |||
| 4 | CRB08 (BU-GY) | 22 | DU5T-14421-CB | |||
| 5 | VX107 (YE-GY) | 22 | DU5T-14421-CB | |||
| 6 | GD301 (BK-BU) | 22 | DU5T-14421-CB | |||
| 6 | GD348 (BK-YE) | 22 | DU5T-14421-CB | |||
| 7 | RRD12 (BN) | 22 | DU5T-14421-CB | |||
| 8 | * | * | N/A | |||
| 9 | LRD12 (BU-GY) | 22 | DU5T-14421-CB | |||
| 10 | RRB08 (BN-VT) | 22 | DU5T-14421-CB | |||
| 11 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * (RD) | 22 | N/A | |||
| 2 | * (BK) | 22 | N/A | |||
| 3 | * | * | N/A | |||
| 4 | CRB08 (BU-GY) | 22 | N/A | |||
| 5 | * (BU) | 22 | N/A | |||
| 6 | * (GN) | 22 | N/A | |||
| 7 | * (BU) | 22 | N/A | |||
| 8 | * | * | N/A | |||
| 9 | * (VT) | 22 | N/A | |||
| 10 | RRB08 (BN-VT) | 22 | N/A | |||
| 11 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1185
Service Part Number:
BU2Z-14S411-AJA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
12
Vehicle Uses:
- Camera - Reverse Park Aid
- Switch - Gear Shift Select/Neutral Safety
Pigtail Kit Part Number WPT-949
Service Part Number:
3U2Z-14S411-BMAB
Gauge:
18
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Control - Navigation Display
- Module - Driver Door
- Module - Front Interface
- Monitor - Video/DVD
- Switch - Gear Shift Select/Neutral Safety
