Connector End View (C903) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C903 | INLINE | BK | 14A00514334 | See Below | ||||

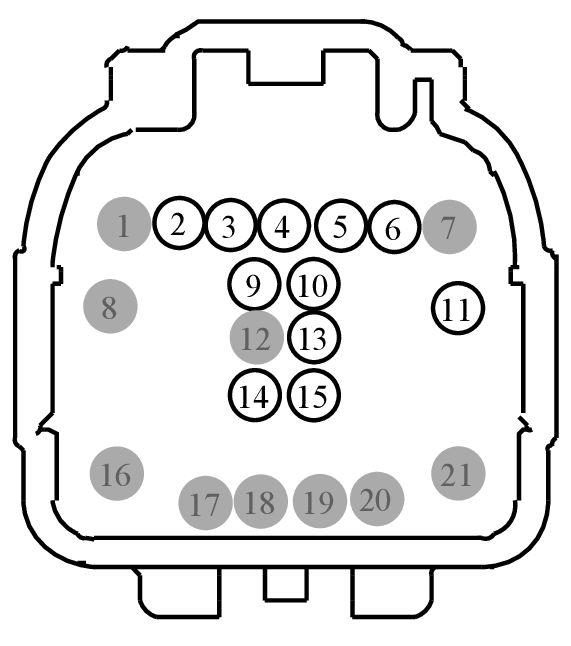

MALE
Harness
14A005

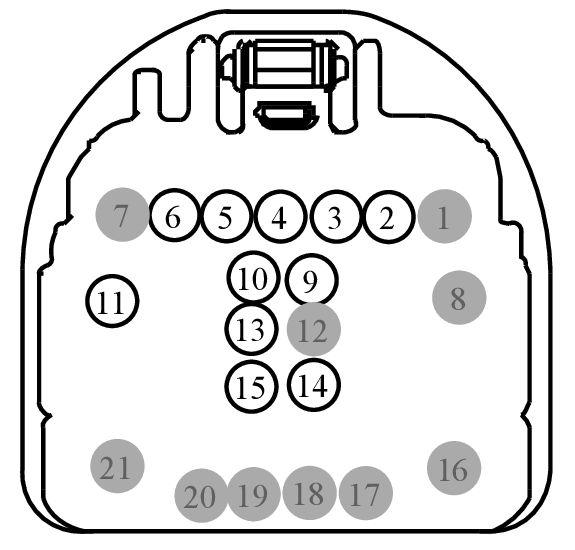

FEMALE
Harness
14334
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14421-FA | EU2Z-14421-BA | 0.64 |
| AU5T-14421-DA | EU2Z-14421-CA | 1.5 |
| DU5T-14474-EAB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | GD301 (BK-BU) | 22 | DU5T-14421-FA | |||
| 3 | CAC15 (BU-BN) | 22 | DU5T-14421-FA | |||
| 4 | CAC04 (WH-BU) | 22 | DU5T-14421-FA | |||
| 5 | CAC03 (WH-VT) | 22 | DU5T-14421-FA | |||
| 6 | CAC02 (GY-BN) | 22 | DU5T-14421-FA | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | VMF04 (BN-BU) | 22 | DU5T-14421-FA | |||
| 10 | VMF05 (GY-BU) | 22 | DU5T-14421-FA | |||
| 11 | CBP35 (YE-GY) | 22 | AU5T-14421-DA | |||
| 12 | * | * | N/A | |||
| 13 | CAC01 (GN-BU) | 22 | DU5T-14421-FA | |||
| 14 | CBB10 (YE-OG) | 22 | DU5T-14421-FA | |||
| 15 | VX107 (YE-GY) | 22 | DU5T-14421-FA | |||
| 16 | * | * | N/A | |||
| 17 | * | * | N/A | |||
| 18 | * | * | N/A | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | GD301 (BK-BU) | 22 | DU5T-14474-EAB | |||
| 3 | CAC15 (BU-BN) | 22 | DU5T-14474-EAB | |||
| 4 | CAC04 (WH-BU) | 22 | DU5T-14474-EAB | |||
| 5 | CAC03 (WH-VT) | 22 | DU5T-14474-EAB | |||
| 6 | CAC02 (GY-BN) | 22 | DU5T-14474-EAB | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | VMF04 (BN-BU) | 22 | DU5T-14474-EAB | |||
| 10 | VMF05 (GY-BU) | 22 | DU5T-14474-EAB | |||
| 11 | CBP35 (YE-GY) | 22 | 7C3T-14474-DA | |||
| 12 | * | * | N/A | |||
| 13 | CAC01 (GN-BU) | 22 | DU5T-14474-EAB | |||
| 14 | CBB10 (YE-OG) | 22 | DU5T-14474-EAB | |||
| 15 | VX107 (YE-GY) | 22 | DU5T-14474-EAB | |||
| 16 | * | * | N/A | |||
| 17 | * | * | N/A | |||
| 18 | * | * | N/A | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1561
Service Part Number:
JU2Z-14S411-ARA
Gauge:
14 16 20
Pin material:
Tin
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1559
Service Part Number:
FU2Z-14S411-RB
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
