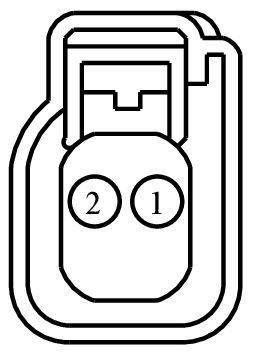

Connector End View (C820) - REAR DOOR AJAR SWITCH RH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C820 | REAR DOOR AJAR SWITCH RH | GY | 14632 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPL39 (YE) | 20 | SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL.SLIDING DOOR) | 97BG-14474-ADA | ||||
| 2 | GD301 (BK-BU) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT | 97BG-14474-ADA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1243
Service Part Number:
3U2Z-14S411-RPC
Gauge:
16
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Rear
- Handle - Decklid
- Lamp - Headlamp - High/Low Beam
- Lamp - Headlamp - Low Beam
- Lamp - License
- Lamp - Rear Turn
- Lamp - Side Marker
- Sensor - Knock
- Sensor - Seat Track Position
- Sensor - Throttle Position
- Sensor - Turbine Shaft Speed
- Sensor - Water in Fuel
- Switch - Deck Lid / Lift Gate Ajar
- Switch - Door Ajar / Interior Lamp
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Switch - Stop Lamp
- Valve - Vapor Management
