Connector End View (C710) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C710 | INLINE | NA | 1463314A005 | See Below | ||||

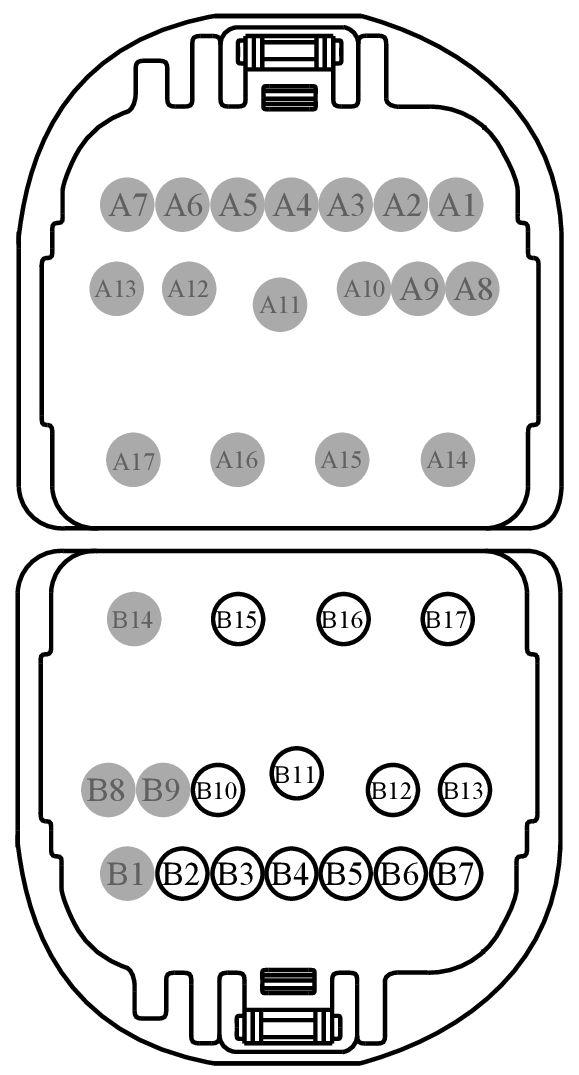

MALE
Harness
14633

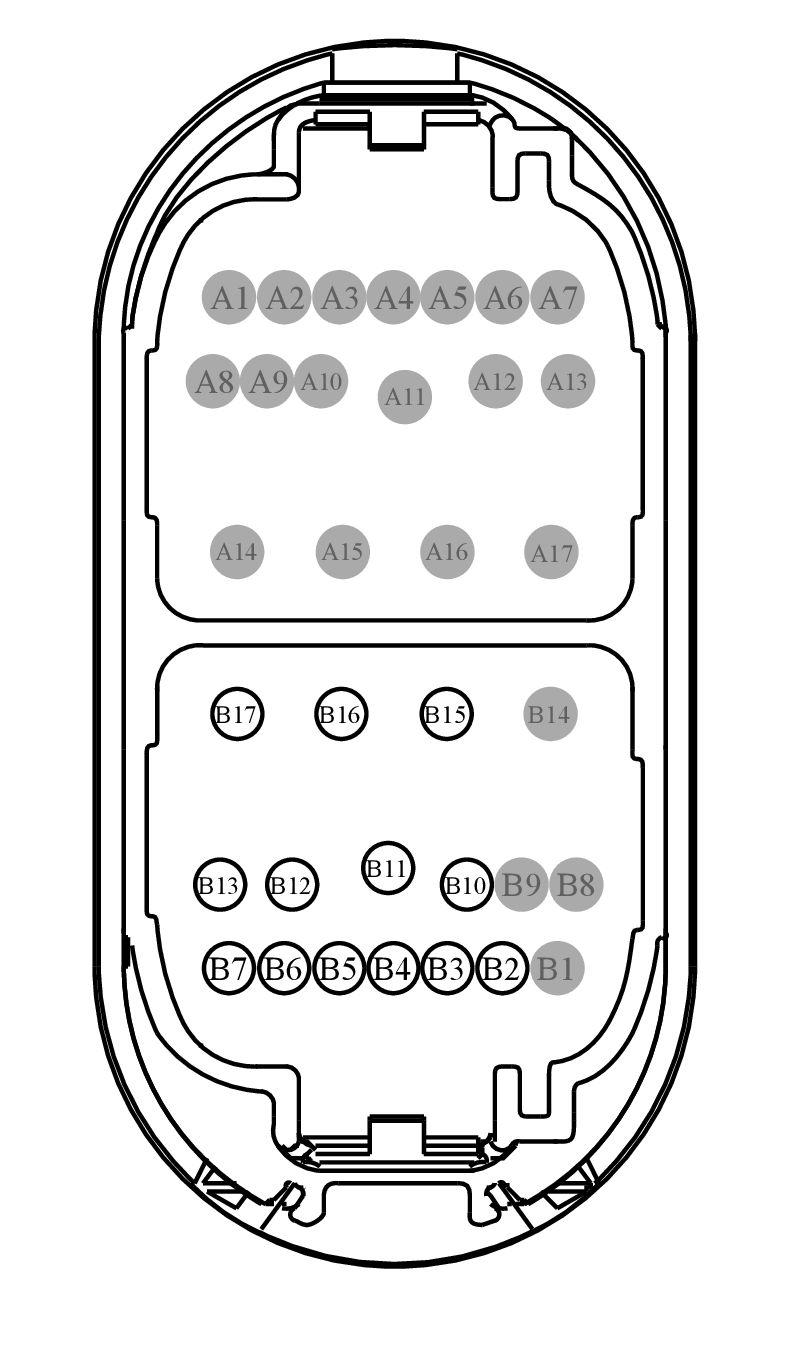

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-BAA | Not Available | |
| 7C3T-14474-DA|BU5T-14474-UA | Not Available | |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| AU5T-14421-DA | EU2Z-14421-CA | 1.5 |
| EU5T-14421-AA | EU2Z-14421-DA | 2.8 |
| EU5T-14421-BA | EU2Z-14421-DA | 2.8 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| EU5T-14474-FA | EU2Z-14474-AA | 2.8 |
| EU5T-14421-AA|*EU5T-14421-AA | Not Available |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| A1 | * | * | N/A | |||
| A2 | * | * | N/A | |||
| A3 | * | * | N/A | |||
| A4 | * | * | N/A | |||
| A5 | * | * | N/A | |||
| A6 | * | * | N/A | |||
| A7 | * | * | N/A | |||
| A8 | * | * | N/A | |||
| A9 | * | * | N/A | |||
| A10 | * | * | N/A | |||
| A11 | * | * | N/A | |||
| A12 | * | * | N/A | |||
| A13 | * | * | N/A | |||
| A14 | * | * | N/A | |||
| A15 | * | * | N/A | |||
| A16 | * | * | N/A | |||
| A17 | * | * | N/A | |||
| B1 | * | * | N/A | |||
| B2 | CPL36 (GN) | 20 | 9U5T-14421-BA | |||
| B3 | CPL11 (GY-BN) | 20 | 9U5T-14421-BA | |||
| B4 | CPL13 (BN-GN) | 20 | 9U5T-14421-BA | |||
| B5 | VDN13 (BN) | 20 | 9U5T-14421-BA | |||
| B6 | CBX07 (GN-RD) | 20 | 9U5T-14421-BA | |||
| B7 | CPW16 (BU-OG) | 20 | 9U5T-14421-BA | |||
| B8 | * | * | N/A | |||
| B9 | * | * | N/A | |||
| B10 | CPW15 (YE) | 20 | 9U5T-14421-BA | |||
| B11 | GD312 (BK) | 20 | EU5T-14421-AA|*EU5T-14421-AA | |||
| B12 | VME09 (WH-GN) | 20 | AU5T-14421-DA | |||
| B13 | RME09 (BN-YE) | 20 | AU5T-14421-DA | |||
| B14 | * | * | N/A | |||
| B15 | CPW14 (VT-WH) | 20 | EU5T-14421-AA | |||
| B16 | CBP38 (GY-BU) | 14 | EU5T-14421-BA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| A1 | * | * | N/A | |||
| A2 | * | * | N/A | |||
| A3 | * | * | N/A | |||
| A4 | * | * | N/A | |||
| A5 | * | * | N/A | |||
| A6 | * | * | N/A | |||
| A7 | * | * | N/A | |||
| A8 | * | * | N/A | |||
| A9 | * | * | N/A | |||
| A10 | * | * | N/A | |||
| A11 | * | * | N/A | |||
| A12 | * | * | N/A | |||
| A13 | * | * | N/A | |||
| A14 | * | * | N/A | |||
| A15 | * | * | N/A | |||
| A16 | * | * | N/A | |||
| A17 | * | * | N/A | |||
| B1 | * | * | N/A | |||
| B2 | CPL36 (GN) | 22 | 8U5T-14474-BB | |||
| B3 | CPL11 (GY-BN) | 20 | 8U5T-14474-BB | |||
| B4 | CPL13 (BN-GN) | 20 | 8U5T-14474-BB | |||
| B5 | VDN13 (BN) | 22 | 8U5T-14474-BB | |||
| B6 | CBX07 (GN-RD) | 22 | 8U5T-14474-BB | |||
| B7 | CPW16 (BU-OG) | 22 | 8U5T-14474-BB | |||
| B8 | * | * | N/A | |||
| B9 | * | * | N/A | |||
| B10 | CPW15 (YE) | 22 | 8U5T-14474-BB | |||
| B11 | GD312 (BK) | 22 | EU5T-14474-BAA | |||
| B12 | VME09 (WH-GN) | 18 | 7C3T-14474-DA|BU5T-14474-UA | |||
| B12 | VME09 (WH-GN) | 22 | 7C3T-14474-DA|BU5T-14474-UA | |||
| B13 | RME09 (BN-YE) | 18 | 7C3T-14474-DA|BU5T-14474-UA | |||
| B13 | RME09 (BN-YE) | 22 | 7C3T-14474-DA|BU5T-14474-UA | |||
| B14 | * | * | N/A | |||
| B15 | CPW14 (VT-WH) | 22 | N/A | |||
| B16 | CBP38 (GY-BU) | 14 | EU5T-14474-FA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1576
Service Part Number:
KU2Z-14S411-CA
Gauge:
14 16 20
Pin material:
Tin & Tin (greased)
Cavities:
34
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1519
Service Part Number:
JU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
17
Vehicle Uses:
- Connector - Inline
