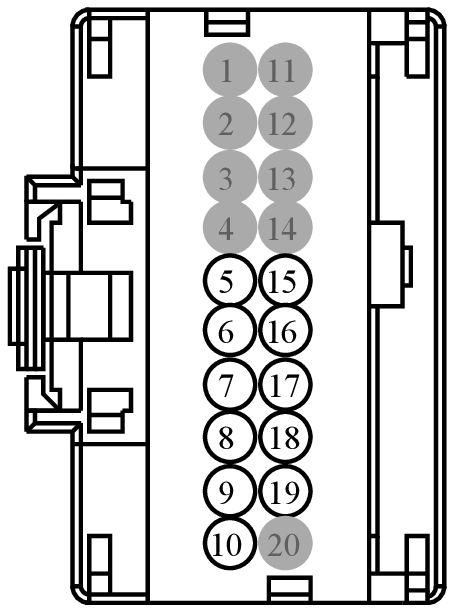

Connector End View (C652B) - PASSENGER DOOR MODULE (PDM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C652B	PASSENGER DOOR MODULE (PDM)	BK	14630	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	LPM12 (BU-GY)	22	CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) +	8U5T-14474-BB
6	VPM37 (BU-OG)	22	SENSOR - RIGHT MIRROR POSITION # HORIZONTAL	8U5T-14474-BB
7	CPM34 (WH-BN)	22	CTRL MOD. - RIGHT MIRROR UP	8U5T-14474-BB
8	CPM33 (WH-VT)	22	CTRL MOD. - RIGHT MIRROR RIGHT	8U5T-14474-BB
9	CPM40 (WH-OG)	22	CTRL MOD. - RIGHT MIRROR FOLD OUT (DRV)	8U5T-14474-BB
10	CLN32 (BN-YE)	22	CTRL MOD. - PUDDLE LAMP RIGHT	8U5T-14474-BB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	RPM12 (VT-WH)	22	CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) -	8U5T-14474-BB
16	VPM38 (BN-GN)	22	SENSOR - RIGHT MIRROR POSITION # VERTICAL	8U5T-14474-BB
17	RPM08 (GN-BU)	22	CTRL MOD. - RIGHT MIRROR RETURN	8U5T-14474-BB
18	CPM07 (BN)	22	CTRL MOD. - RIGHT MIRROR FOLD IN	8U5T-14474-BB
19	CRB07 (BN)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER +	8U5T-14474-BB
20	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1542

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-YA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Control Head - Manual Climate
Module - Driver Door
Module - Electronic Automatic Temperature Control (EATC)
Module - Front Interface
Module - Passenger Door
