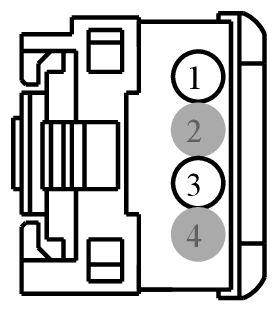

Connector End View (C611) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C611 | INLINE | BK | PIA14630 | See Below | ||||
MALE
Harness
PIA
FEMALE
Harness
14630
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * (*) | * | N/A | |||
| 2 | * | * | N/A | |||
| 3 | * (*) | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VE750 (GN-BU) | 20 | 9U5T-14474-DB | |||
| 2 | * | * | N/A | |||
| 3 | RE407 (YE-VT) | 20 | 9U5T-14474-DB | |||

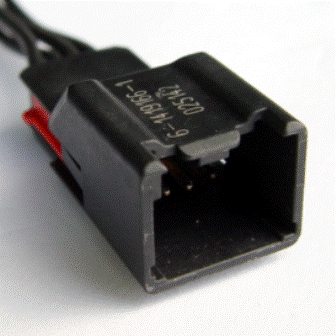

Available Pigtail Kits
Pigtail Kit Part Number WPT-394
Service Part Number:
3U2Z-14S411-KNA
Gauge:
18
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Element - Heated Seat
- Lamp - License
