Connector End View (C610) - INLINE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C610	INLINE	1463014A005			See Below

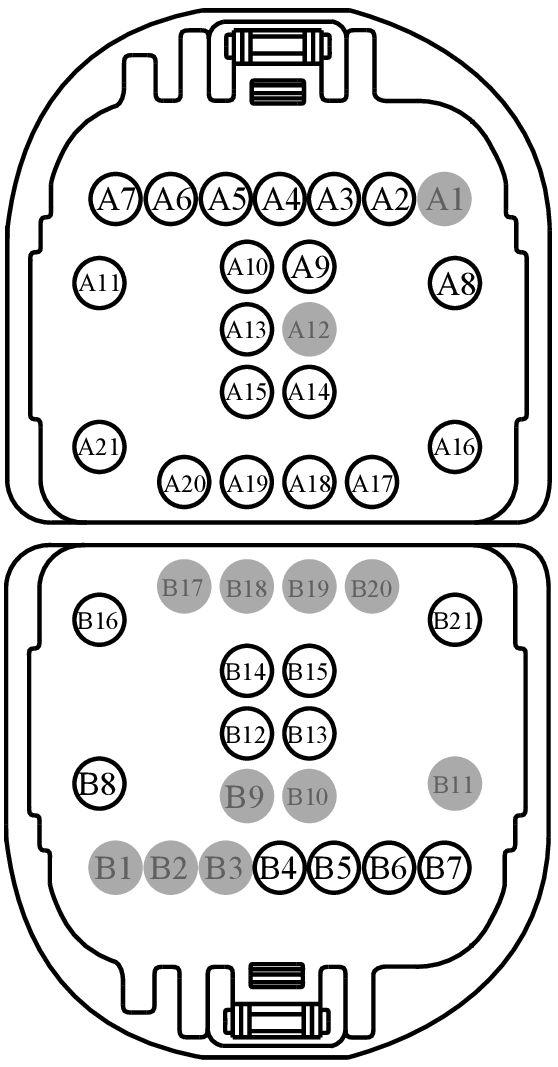

MALE

Harness

14630

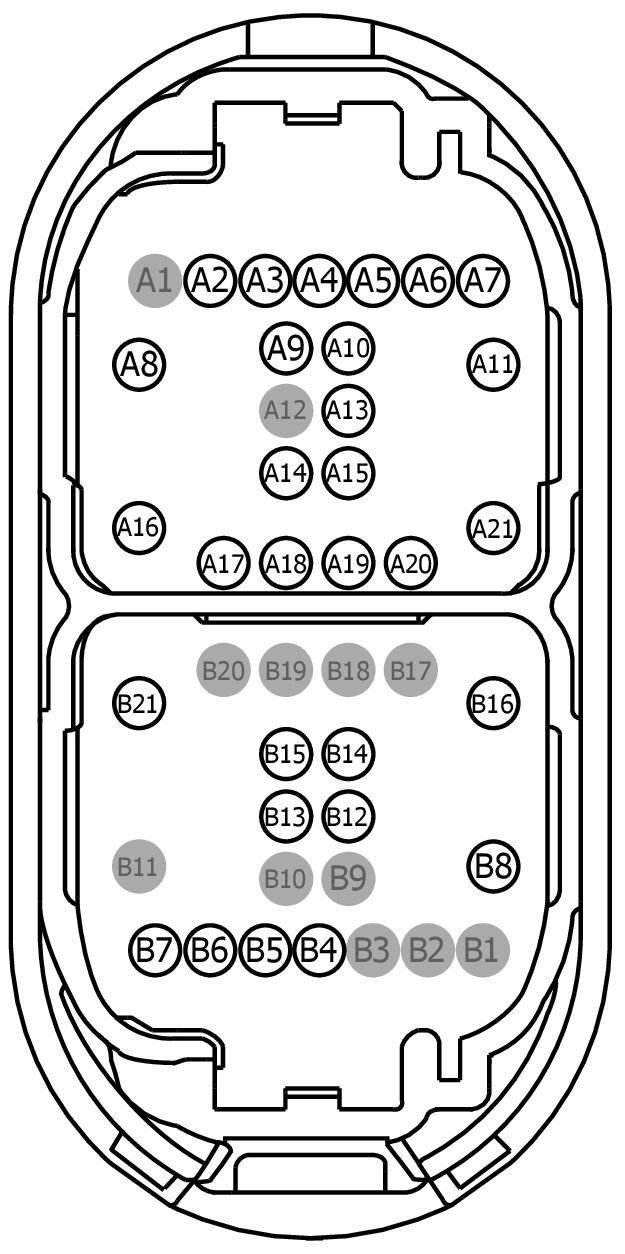

FEMALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-DA\|BU5T-14474-UA	Not Available
*8U5T-14474-BB	Not Available
BU5T-14474-BAA	Not Available
8U5T-14474-CB\|8U5T-14474-BB	Not Available
9U5T-14421-BA	EU2Z-14421-BA	0.64
AU5T-14421-DA	EU2Z-14421-CA	1.5
EU5T-14421-AA	EU2Z-14421-DA	2.8
8U5T-14474-BB	DU2Z-14474-CA	0.64
EU5T-14474-HA	EU2Z-14474-AA	2.8

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
A1	*	*	N/A
A2	CBB63 (GY-RD)	20	9U5T-14421-BA
A2	CBB93 (GY-BN)	20	9U5T-14421-BA
A3	CPL31 (WH)	20	9U5T-14421-BA
A4	CPL11 (GY-BN)	20	9U5T-14421-BA
A5	CPM44 (GN-OG)	20	9U5T-14421-BA
A6	CPM43 (WH-VT)	20	9U5T-14421-BA
A7	CPL13 (BN-GN)	20	9U5T-14421-BA
A8	VDB06 (GY-OG)	20	AU5T-14421-DA
A9	VDN13 (BN)	20	9U5T-14421-BA
A10	CBX07 (GN-RD)	20	9U5T-14421-BA
A11	RME10 (WH-OG)	20	AU5T-14421-DA
A12	*	*	N/A
A13	CLF75 (VT-BN)	20	9U5T-14421-BA
A14	RE407 (YE-VT)	20	9U5T-14421-BA
A15	VE750 (GN-BU)	20	9U5T-14421-BA
A16	VDB07 (VT-OG)	20	EU5T-14421-AA
A17	VR237 (BN-WH)	20	9U5T-14421-BA
A18	RR175 (YE-OG)	20	9U5T-14421-BA
A19	GD239 (BK-YE)	20	9U5T-14421-BA
A20	GD239 (BK-YE)	20	9U5T-14421-BA
A21	VME10 (WH-VT)	20	EU5T-14421-AA
B1	*	*	N/A
B2	*	*	N/A
B3	*	*	N/A
B4	VPK40 (WH-OG)	20	9U5T-14421-BA
B5	VPK02 (VT-WH)	20	9U5T-14421-BA
B6	RPK02 (GY-YE)	20	9U5T-14421-BA
B7	RPK39 (VT-OG)	20	9U5T-14421-BA
B8	CLS05 (BU-GY)	20	AU5T-14421-DA
B9	*	*	N/A
B10	*	*	N/A
B11	*	*	N/A
B12	CMP33 (BU)	20	9U5T-14421-BA
B13	DMP34 (BK)	20	9U5T-14421-BA
B14	VMP34 (GN-VT)	20	9U5T-14421-BA
B15	VMP35 (VT-BN)	20	9U5T-14421-BA
B16	SBP26 (YE-RD)	16	EU5T-14421-AA
B17	*	*	N/A
B18	*	*	N/A
B19	*	*	N/A
B20	*	*	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
A1	*	*	N/A
A2	CBB93 (GY-BN)	22	8U5T-14474-BB
A3	CPL31 (WH)	22	8U5T-14474-BB
A4	CPL11 (GY-BN)	20	8U5T-14474-BB
A5	CPM44 (GN-OG)	22	8U5T-14474-BB
A6	CPM43 (WH-VT)	22	8U5T-14474-BB
A7	CPL13 (BN-GN)	18	8U5T-14474-CB\|8U5T-14474-BB
A7	CPL13 (BN-GN)	20	8U5T-14474-CB\|8U5T-14474-BB
A8	VDB06 (GY-OG)	22	7C3T-14474-DA
A9	VDN13 (BN)	22	8U5T-14474-BB
A10	CBX07 (GN-RD)	22	8U5T-14474-BB
A11	RME10 (WH-OG)	20	7C3T-14474-DA\|BU5T-14474-UA
A11	RME10 (WH-OG)	22	7C3T-14474-DA\|BU5T-14474-UA
A12	*	*	N/A
A13	CLF75 (VT-BN)	22	8U5T-14474-BB
A14	RE407 (YE-VT)	22	8U5T-14474-BB
A15	VE750 (GN-BU)	22	8U5T-14474-BB
A16	VDB07 (VT-OG)	22	BU5T-14474-BAA
A17	VR237 (BN-WH)	22	8U5T-14474-BB
A18	RR175 (YE-OG)	22	8U5T-14474-BB
A19	GD239 (BK-YE)	22	8U5T-14474-BB
A20	GD239 (BK-YE)	22	8U5T-14474-BB
A21	VME10 (WH-VT)	20	BU5T-14474-BAA
A21	VME10 (WH-VT)	22	BU5T-14474-BAA
B1	*	*	N/A
B2	*	*	N/A
B3	*	*	N/A
B4	VPK40 (WH-OG)	22	8U5T-14474-BB
B5	VPK02 (VT-WH)	22	8U5T-14474-BB
B6	RPK02 (GY-YE)	22	8U5T-14474-BB
B7	RPK39 (VT-OG)	22	8U5T-14474-BB
B8	CLS05 (BU)	20	7C3T-14474-DA\|BU5T-14474-UA
B8	CLS05 (BU-GY)	22	7C3T-14474-DA\|BU5T-14474-UA
B9	*	*	N/A
B10	*	*	N/A
B11	*	*	N/A
B12	CMP33 (BU)	22	8U5T-14474-BB
B13	DMP34 (*)	22	*8U5T-14474-BB
B14	VMP34 (GN-VT)	22	8U5T-14474-BB
B15	VMP35 (VT-BN)	22	8U5T-14474-BB
B16	SBP26 (YE-RD)	10	EU5T-14474-HA
B17	*	*	N/A
B18	*	*	N/A
B19	*	*	N/A
B20	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1425

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-RA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline

Pigtail Kit Part Number WPT-1482

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-GB

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
