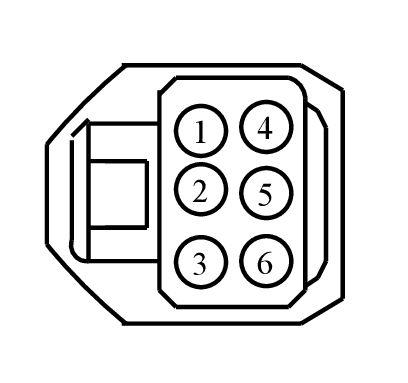

Connector End View (C608) - FRONT DOOR WINDOW REGULATOR MOTOR RH

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C608	FRONT DOOR WINDOW REGULATOR MOTOR RH	BK	14630	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1F1T-14474-GA	DU2Z-14474-FA	2.8
1F1T-14474-EA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW41 (GY-YE)	16	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN (IF POSITIVE)	1F1T-14474-GA
2	VPW44 (BU-OG)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	1F1T-14474-EA
3	LPW42 (VT-GY)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS	1F1T-14474-EA
4	VPW45 (GN-WH)	16	CTRL MOD. - WINDOW MOTOR PASSENGER # HALL EFFECT SENSOR 2 (UP IF LEAD)	1F1T-14474-GA
5	VPW39 (BU-WH)	22	CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 2 (UP IF LEAD)	1F1T-14474-EA
6	RPW43 (YE-GN)	22	CTRL MOD. - WINDOW MOTOR PASSENGER # SENSORS	1F1T-14474-EA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Motor - Power Window - LH - Front
Motor - Power Window - LH - Rear
Motor - Power Window - RH - Front
Motor - Power Window - RH - Rear
