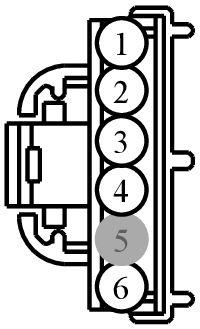

Connector End View (C604) - FRONT DOOR WINDOW CONTROL SWITCH RH

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C604	FRONT DOOR WINDOW CONTROL SWITCH RH	GY	14630	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPW05 (GN-BN)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	3F2T-14474-SA
2	CPW20 (WH-OG)	22	SWITCH - POWER WINDOW FRONT PASSENGER # UP	3F2T-14474-SA
3	CPW19 (BU-WH)	22	SWITCH - POWER WINDOW FRONT PASSENGER # DOWN	3F2T-14474-SA
3	CPW19 (VT)	22	SWITCH - POWER WINDOW FRONT PASSENGER # DOWN	3F2T-14474-SA
4	CPL78 (VT-WH)	22	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	3F2T-14474-SA
5	*	*	Not Used	N/A
6	RPW05 (GN-BN)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	3F2T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1028

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-APA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Switch - Power Window - LH - Rear
Switch - Power Window - Passenger (Front)
Switch - Power Window - RH - Rear
