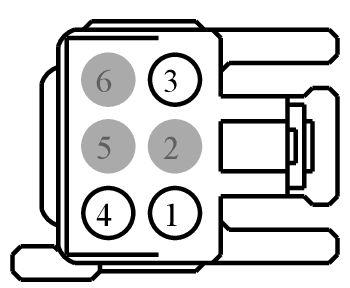

Connector End View (C573) - FRONT DOOR AMBIENT LAMP LH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C573 | FRONT DOOR AMBIENT LAMP LH | LT GY | 14631 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AAB | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VDN13 (BN) | 20 | CTRL MOD. - LIN BUS # BCM 13 | 97BG-14474-AAB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CBX07 (GN-RD) | 20 | POWER - CTRL MOD. AMBIENT LIGHTING | 97BG-14474-AAB | ||||
| 4 | GD234 (BK-VT) | 22 | GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT | 97BG-14474-AAB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-962
Service Part Number:
3U2Z- 14S411-JBB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Mating Connector WPT-1299
- Switch - Gear Shift Select/Neutral Safety
- Switch - Overdrive Cancel
- Switch - Power Sliding Door
