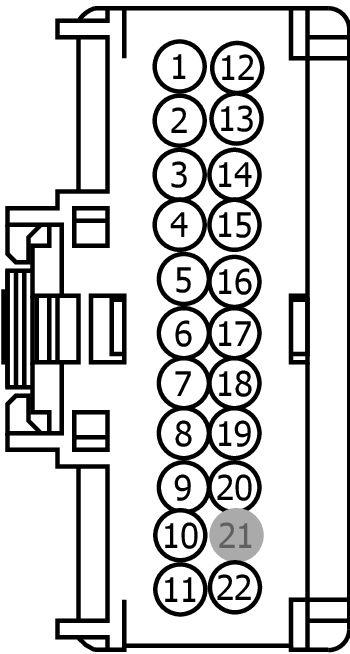

Connector End View (C521) - EXTERIOR MIRROR LH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C521 | EXTERIOR MIRROR LH | BK | 14631 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB93 (GY-BN) | 20 | FUSE - 93 OR CIRCUIT BREAKER | 8U5T-14474-BB | ||||
| 2 | LRD12 (BU-GY) | 20 | CTRL MOD. - ELECTROCHROMIC MIRROR + | 8U5T-14474-BB | ||||
| 3 | CPM29 (GN) | 22 | CTRL MOD. - LEFT MIRROR UP | 8U5T-14474-BB | ||||
| 4 | RPM05 (VT-GN) | 22 | CTRL MOD. - LEFT MIRROR RETURN | 8U5T-14474-BB | ||||
| 5 | CPM28 (BU-BN) | 22 | CTRL MOD. - LEFT MIRROR RIGHT | 8U5T-14474-BB | ||||
| 6 | RRD12 (BN) | 20 | CTRL MOD. - ELECTROCHROMIC MIRROR - | 8U5T-14474-BB | ||||
| 7 | CLS22 (GN-BN) | 22 | CTRL MOD. - TURN LAMP LEFT MIRROR + | 8U5T-14474-BB | ||||
| 8 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | 8U5T-14474-BB | ||||
| 9 | VPM36 (BN-YE) | 22 | SENSOR - LEFT MIRROR POSITION # VERTICAL | 8U5T-14474-BB | ||||
| 10 | VPM35 (YE-BU) | 22 | SENSOR - LEFT MIRROR POSITION # HORIZONTAL | 8U5T-14474-BB | ||||
| 11 | LPM30 (GY-VT) | 22 | CTRL MOD. - SENSORS MIRROR POSITION (LEFT) + | 8U5T-14474-BB | ||||
| 12 | CLS05 (BU-GY) | 20 | CTRL MOD. - PARK | 8U5T-14474-BB | ||||
| 13 | CRB06 (GN-WH) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + | 8U5T-14474-BB | ||||
| 14 | CLN31 (VT-GN) | 22 | CTRL MOD. - PUDDLE LAMP LEFT | 8U5T-14474-BB | ||||
| 15 | CLF72 (BN) | 20 | CTRL MOD. - SPOTLIGHT # LAMP SPOTLIGHT LEFT | 8U5T-14474-BB | ||||
| 16 | CPM44 (GN-OG) | 20 | SWITCH - POWER MIRROR # RIGHT MIRROR TELESCOPE OUT (IF PLUS) | 8U5T-14474-BB | ||||
| 17 | CPM43 (WH-VT) | 20 | SWITCH - POWER MIRROR # RIGHT MIRROR TELESCOPE IN (IF PLUS) | 8U5T-14474-BB | ||||
| 18 | CPM04 (VT-BN) | 22 | CTRL MOD. - LEFT MIRROR FOLD IN | 8U5T-14474-BB | ||||
| 19 | CPM39 (GN-VT) | 22 | CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) | 8U5T-14474-BB | ||||
| 20 | RRB06 (GY-VT) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - | 8U5T-14474-BB | ||||
| 21 | * | * | Not Used | N/A | ||||
| 22 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | 8U5T-14474-BB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1616
Service Part Number:
KU2Z-14S411-MA
Gauge:
20
Pin material:
Silver
Cavities:
22
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview With Memory
