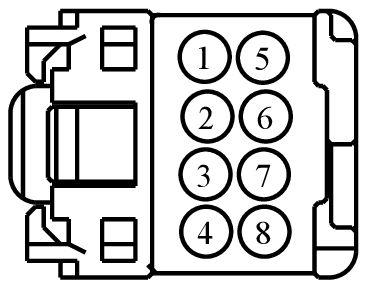

Connector End View (C516) - EXTERIOR MIRROR LH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C516 | EXTERIOR MIRROR LH | BK | 14631 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-RA | DU2Z-14474-BA | 0.64 |
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB93 (GY-BN) | 20 | FUSE - 93 OR CIRCUIT BREAKER | 3F2T-14474-RA | ||||
| 2 | LRD12 (BU-GY) | 20 | CTRL MOD. - ELECTROCHROMIC MIRROR + | 3F2T-14474-RA | ||||
| 3 | CPM29 (GN) | 22 | CTRL MOD. - LEFT MIRROR UP | 3F2T-14474-SA | ||||
| 4 | RPM05 (VT-GN) | 22 | CTRL MOD. - LEFT MIRROR RETURN | 3F2T-14474-SA | ||||
| 5 | CPM28 (BU-BN) | 22 | CTRL MOD. - LEFT MIRROR RIGHT | 3F2T-14474-SA | ||||
| 6 | RRD12 (BN) | 20 | CTRL MOD. - ELECTROCHROMIC MIRROR - | 3F2T-14474-RA | ||||
| 7 | CLS22 (GN-BN) | 22 | CTRL MOD. - TURN LAMP LEFT MIRROR + | 3F2T-14474-SA | ||||
| 8 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT | 3F2T-14474-SA | ||||

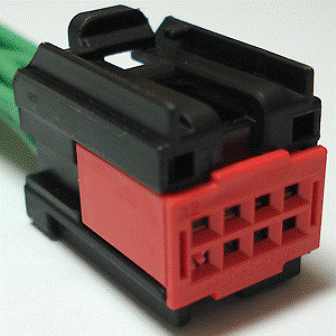

Available Pigtail Kits
Pigtail Kit Part Number WPT-995
Service Part Number:
3U2Z-14S411-BGB
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Lamp - Dimmer Switch
- Switch - 4x4 Control
- Switch - Adjustable Pedal
- Switch - Center Stack (Multipurpose)
- Switch - Dimmer
- Switch - Hazard Warning
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Multifunction (Wiper)
- Switch - Seat (3rd Row)
- Switch - Third Row Power Folding Seat
- Switch - Traction Control
