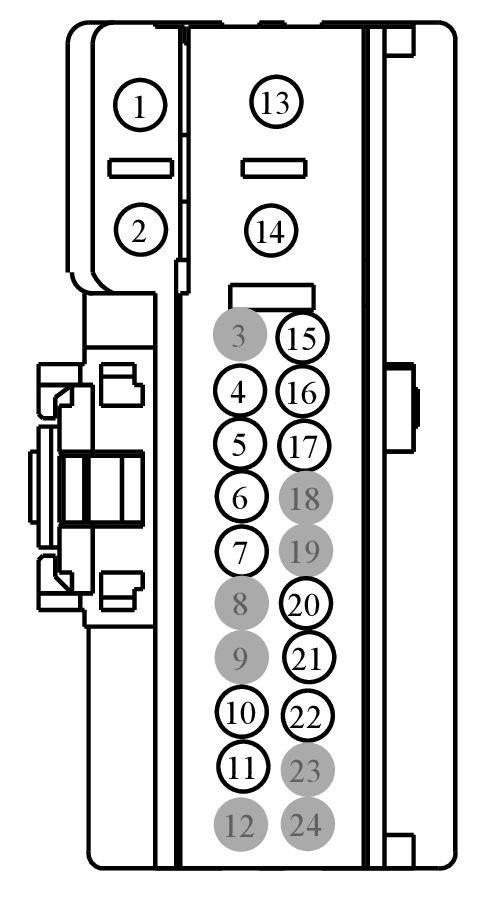

Connector End View (C501A) - DRIVER DOOR MODULE (DDM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C501A | DRIVER DOOR MODULE (DDM) | BK | 14631 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F8VB-14474-AA | EU2Z-14474-AB | 2.8 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBP25 (RD) | 14 | FUSE - 25 OR CIRCUIT BREAKER | F8VB-14474-AA | ||||
| 2 | GD233 (BK) | 14 | GROUND - COWL SIDE/PILLAR A LEFT | F8VB-14474-AA | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | CLS22 (GN-BN) | 22 | CTRL MOD. - TURN LAMP LEFT MIRROR + | 8U5T-14474-BB | ||||
| 5 | VPLA4 (WH-GN) | 22 | CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE | 8U5T-14474-BB | ||||
| 6 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | 8U5T-14474-BB | ||||
| 7 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | 8U5T-14474-BB | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | CPL43 (VT-GY) | 22 | SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK | 8U5T-14474-BB | ||||
| 11 | VPW39 (BU-WH) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 2 (UP IF LEAD) | 8U5T-14474-BB | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | CPW35 (GN) | 14 | CTRL MOD. - WINDOW MOTOR DRIVER # DOWN (IF POSITIVE) | F8VB-14474-AA | ||||
| 14 | CPW34 (BU) | 14 | CTRL MOD. - WINDOW MOTOR DRIVER # UP (IF POSITIVE) | F8VB-14474-AA | ||||
| 15 | CPL77 (BU-GN) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION | 8U5T-14474-BB | ||||
| 16 | LPW36 (WH-BN) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS | 8U5T-14474-BB | ||||
| 17 | RPW03 (BU-GN) | 22 | CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN | 8U5T-14474-BB | ||||
| 18 | * | * | Not Used | N/A | ||||
| 19 | * | * | Not Used | N/A | ||||
| 20 | CPL42 (GY-YE) | 22 | SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK | 8U5T-14474-BB | ||||
| 21 | VPW38 (YE-BU) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # HALL EFFECT SENSOR 1 (DOWN IF LEAD) | 8U5T-14474-BB | ||||
| 22 | RPW37 (VT-GN) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS | 8U5T-14474-BB | ||||
| 23 | * | * | Not Used | N/A | ||||
| 24 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1608
Service Part Number:
KU2Z-14S411-UA
Gauge:
14 20
Pin material:
Tin (Greased) & Silver
Cavities:
24
Vehicle Uses:
- Module - Driver Door
- Module - Passenger Door
