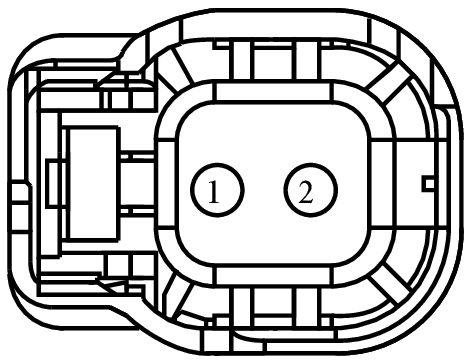

Connector End View (C436) - REAR FOG LAMP
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C436 |
REAR FOG LAMP |
BK |
13A576 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CLS45 (BN-GN) |
20 |
CTRL MOD. - FOG LAMP REAR (LEFT) + |
7C3T-14474-RA |
| 2 |
GD476 (BK-WH) |
20 |
GROUND - FRAME REAR LEFT |
7C3T-14474-RA |
