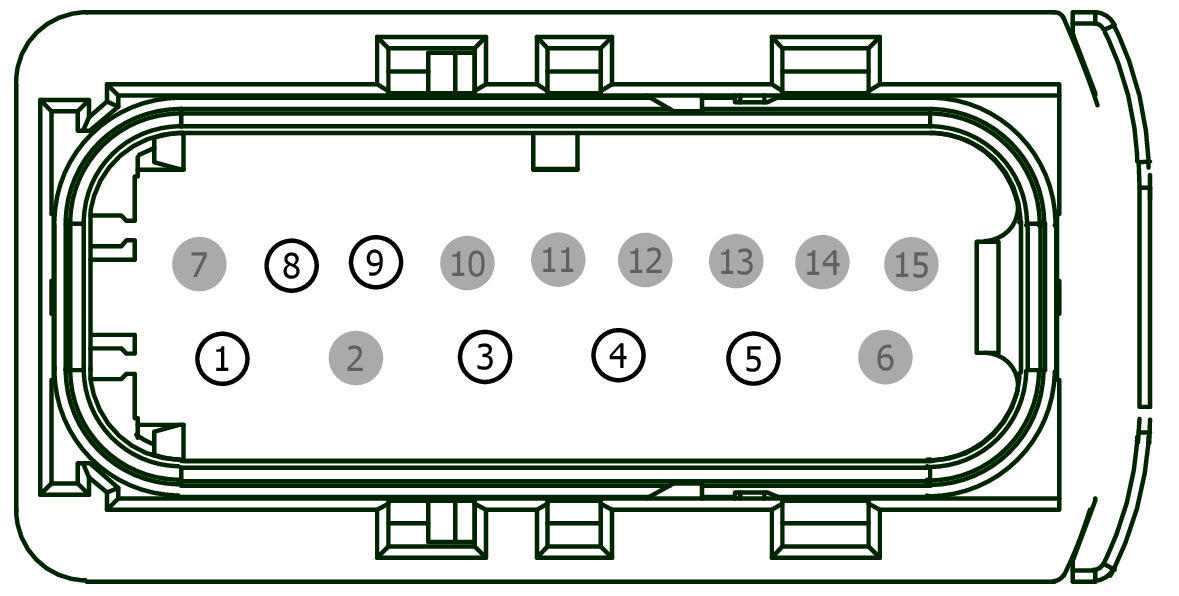

Connector End View (C433) - FUEL PUMP CONTROL MODULE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C433 |
FUEL PUMP CONTROL MODULE |
BK |
14405 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 2S6T-14474-PEA |
Not Available |
| 6G9T-14474-DDA |
Not Available |
| 2S6T-14474-PDA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBK01 (BU) |
12 |
FUSE - 50 OR CIRCUIT BREAKER (VPWR 1) |
2S6T-14474-PEA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
GD480 (BK) |
16 |
GROUND - FRAME MIDDLE LEFT |
2S6T-14474-PDA |
| 4 |
RE515 (WH-BN) |
14 |
DRIVER - FUEL PUMP MOTOR (FPDM) - |
2S6T-14474-PEA |
| 5 |
CE515 (YE-GY) |
14 |
DRIVER - FUEL PUMP MOTOR (FPDM) + |
2S6T-14474-PEA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
VE225 (YE-OG) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) |
6G9T-14474-DDA |
| 9 |
VE518 (BN-WH) |
22 |
MONITOR - FUEL PUMP (FPM) |
6G9T-14474-DDA |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
