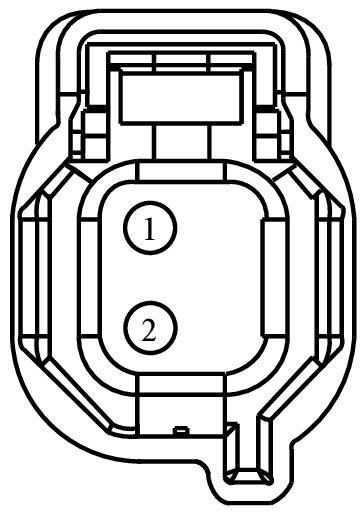

Connector End View (C426) - REAR WHEEL SPEED SENSOR RH

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C426	REAR WHEEL SPEED SENSOR RH	GY	14405	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VCA06 (WH-OG)	20	SENSOR - WHEEL SPEED RIGHT REAR	7C3T-14474-RA
2	RCA20 (BN)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR	7C3T-14474-RA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1116

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BJA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Running Board
Sensor - Knock
Sensor - Speed
Sensor - Water in Fuel
