Connector End View (C422) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C422 | INLINE | LT GY | 1440515K857 | See Below | ||||

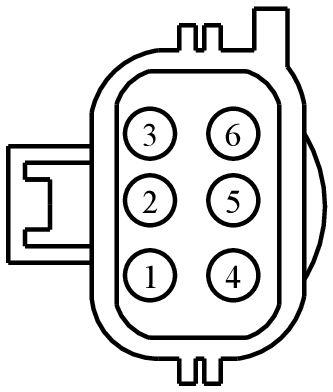

MALE
Harness
14405

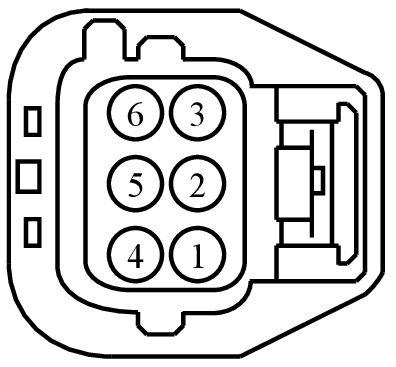

FEMALE
Harness
15K857
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| FU5T-14421-CA | Not Available | |
| *97BG-14474-BEA | Not Available | |
| 97BG-14421-BDA | EU2Z-14421-FA | 2.8 |
| 97BG-14421-BFA | EU2Z-14421-FA | 2.8 |
| 97BG-14421-BEA | EU2Z-14421-FA | 2.8 |
| 97BG-14474-BFA | DU2Z-14474-FA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CCB18 (YE-GY) | 10 | FU5T-14421-CA | |||
| 2 | CCB19 (GN-BN) | 10 | FU5T-14421-CA | |||
| 3 | CCB16 (WH-VT) | 10 | FU5T-14421-CA | |||
| 4 | CCB17 (BU-GN) | 12 | 97BG-14421-BFA | |||
| 5 | GD480 (BK) | 20 | 97BG-14421-BDA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CCB18 (YE-GY) | 12 | 97BG-14474-BFA | |||
| 2 | CCB19 (GN-BN) | 12 | 97BG-14474-BFA | |||
| 3 | CCB16 (WH-VT) | 12 | 97BG-14474-BFA | |||
| 4 | CCB17 (BU-GN) | 12 | 97BG-14474-BFA | |||
| 5 | GD480 (BK) | 18 | *97BG-14474-BEA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-163
Service Part Number:
1U2Z-14S411-BUA
Gauge:
14
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Motor - Windshield Wiper
Pigtail Kit Part Number WPT-1495
Service Part Number:
AU2Z-14S411-BKB
Gauge:
14
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Trailer Tow - Vehicle Side
