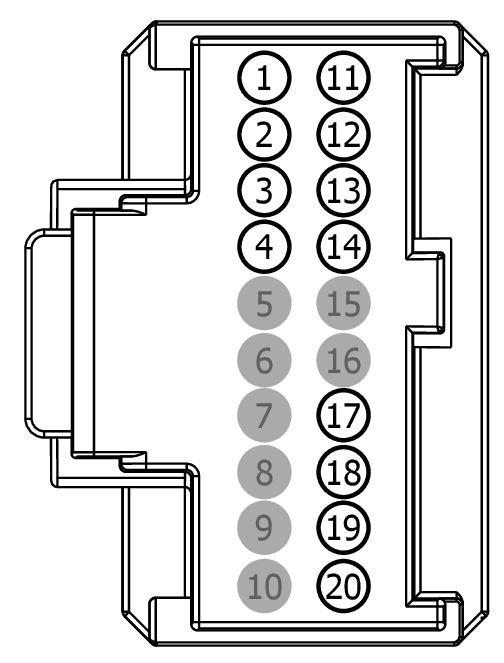

Connector End View (C341F) - DRIVER FRONT SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341F	DRIVER FRONT SEAT MODULE (DSM)	BK	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP23 (VT-GY)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN	9U5T-14474-EB
2	CPP04 (GY)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP	9U5T-14474-EB
3	CPP03 (GN-VT)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD	9U5T-14474-EB
4	CPP22 (GY-BN)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD	9U5T-14474-EB
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VPS12 (GY-OG)	20	SENSOR - DRIVER SEAT RECLINE	9U5T-14474-DB
12	VPP08 (WH)	20	SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE)	9U5T-14474-DB
13	VPP17 (VT-BN)	20	SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD)	9U5T-14474-DB
14	VPP16 (BU-BN)	20	SENSOR - ADJUSTABLE PEDAL	9U5T-14474-DB
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CPP09 (VT-OG)	20	SWITCH - ADJUST. PEDALS # FORWARD	9U5T-14474-DB
18	CPP10 (BN-BU)	20	SWITCH - ADJUST. PEDALS # REARWARD	9U5T-14474-DB
19	CPS29 (WH-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD	9U5T-14474-DB
20	CPS30 (VT-BN)	20	SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD	9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Camera - Reverse Park Aid
Module - Image Processing
Radio - Amplifier
