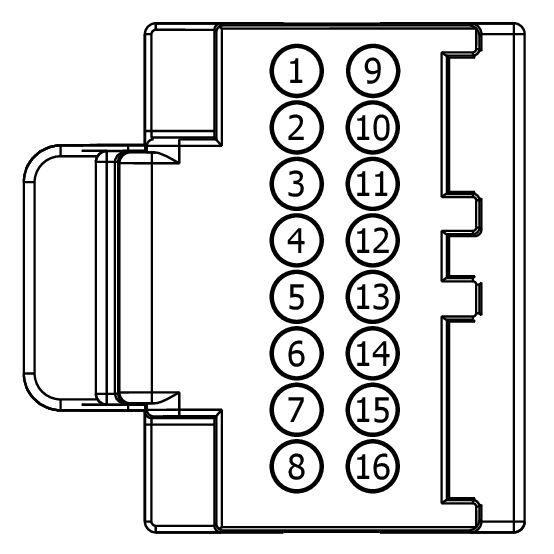

Connector End View (C341D) - DRIVER FRONT SEAT MODULE (DSM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C341D |
DRIVER FRONT SEAT MODULE (DSM) |
BN |
14D231 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-MA |
DU2Z-14474-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CPS03 (VT-GY) |
18 |
CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT UP |
9U5T-14474-MA |
| 2 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
9U5T-14474-MA |
| 3 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
9U5T-14474-MA |
| 4 |
CPP02 (BN) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE PEDAL REARWARD |
9U5T-14474-MA |
| 5 |
CPP01 (WH-OG) |
18 |
CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD |
9U5T-14474-MA |
| 6 |
CPS25 (WH-VT) |
20 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP |
9U5T-14474-MA |
| 7 |
CPS24 (GY) |
20 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN |
9U5T-14474-MA |
| 8 |
CPS27 (BU-BN) |
20 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP |
9U5T-14474-MA |
| 9 |
CPS03 (VT-GY) |
18 |
CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT UP |
9U5T-14474-MA |
| 10 |
VPS09 (BN-BU) |
20 |
SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD |
9U5T-14474-MA |
| 11 |
VPS10 (BU-GN) |
20 |
SENSOR - DRIVER SEAT HEIGHT FRONT / TILT |
9U5T-14474-MA |
| 12 |
VPS11 (GN-BN) |
20 |
SENSOR - DRIVER SEAT HEIGHT REAR / PARALLEL |
9U5T-14474-MA |
| 13 |
RPS12 (YE-VT) |
20 |
CTRL MOD. - DRIVER SEAT SENSORS RECLINE - |
9U5T-14474-MA |
| 14 |
CPS26 (YE-BU) |
20 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN |
9U5T-14474-MA |
| 15 |
CPS23 (GN-VT) |
20 |
SWITCH - SEAT ADJUST. DRIVER FORWARD |
9U5T-14474-MA |
| 16 |
CPS28 (GN) |
20 |
SWITCH - SEAT ADJUST. DRIVER REARWARD |
9U5T-14474-MA |
