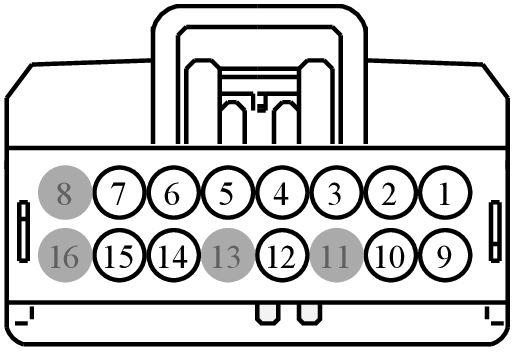

Connector End View (C341A) - DRIVER FRONT SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341A	DRIVER FRONT SEAT MODULE (DSM)	BK	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VHS16 (BU-GN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK BLOWER SPEED CONTROL	9U5T-14474-MA
2	VHS18 (BN-GN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL	9U5T-14474-MA
3	VHS21 (BU-WH)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL	9U5T-14474-MA
4	VHS23 (BN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL	9U5T-14474-MA
5	RHS03 (GY-OG)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN -	9U5T-14474-MA
6	CHS08 (BN-YE)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +	9U5T-14474-MA
7	CHS03 (GN-BN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN +	9U5T-14474-MA
8	*	*	Not Used	N/A
9	RHS26 (VT-GY)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.	9U5T-14474-MA
10	RHS27 (BN-VT)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.	9U5T-14474-MA
11	*	*	Not Used	N/A
12	VHS26 (VT)	20	SENSOR - CUSHION TEMP. DRIVER	9U5T-14474-MA
13	*	*	Not Used	N/A
14	VHS27 (WH-OG)	20	SENSOR - CUSHION TEMP. PASSENGER	9U5T-14474-MA
15	RHS08 (VT-WH)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -	9U5T-14474-MA
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1585

Service Part Number:

KU2Z-14S411-FB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Audio Control
Module - Seat Multi Contour

Pigtail Kit Part Number WPT-1579
