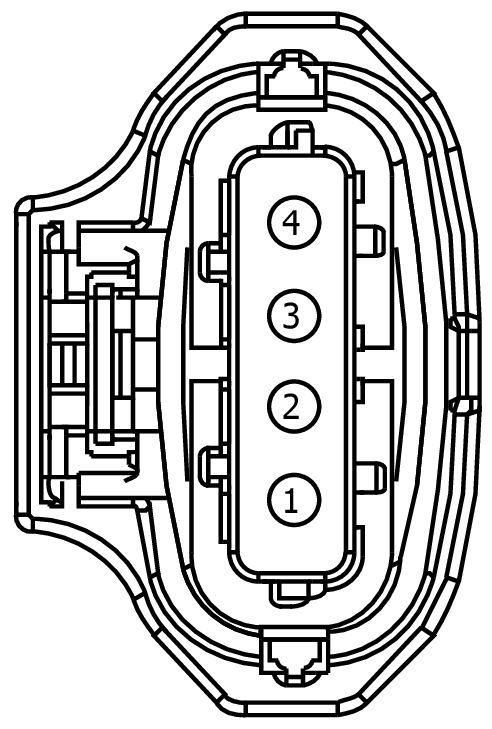

Connector End View (C1140) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1140 |
MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR |
BK |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| EU5T-14474-NB |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RE329 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) - |
EU5T-14474-NB |
| 2 |
VE740 (VT-GY) |
18 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
EU5T-14474-NB |
| 3 |
LE329 (BU) |
18 |
CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) + |
EU5T-14474-NB |
| 4 |
VE803 (BU-GN) |
18 |
SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + |
EU5T-14474-NB |
