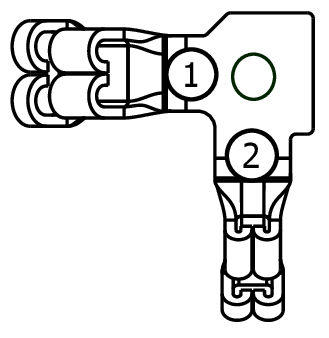

Connector End View (C1100G) - BATTERY
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1100G |
BATTERY |
14B060 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD108 (BK-VT) |
0 |
GROUND - CHASSIS / BATTERY |
N/A |
| 1 |
GD108 (BK-VT) |
4 |
GROUND - CHASSIS / BATTERY |
N/A |
| 2 |
GD108 (BK-VT) |
6 |
GROUND - CHASSIS / BATTERY |
N/A |
