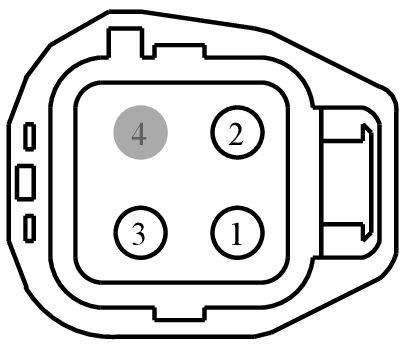

Connector End View (C1048) - COOLING FAN MOTOR 2
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1048 | COOLING FAN MOTOR 2 | DK GY | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-CDA | KU2Z-14474-AA | 6.3 |
| 97BG-14474-CFA | KU2Z-14474-AA | 6.3 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD131 (BK-GY) | 10 | GROUND - HEADLAMP PANEL/GOR RIGHT | 97BG-14474-CFA | ||||
| 2 | CEC02 (GN-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL (FC1) | 97BG-14474-CDA | ||||
| 3 | CEC07 (BN) | 10 | RELAY - ENGINE COOLING FAN HIGH SPEED | 97BG-14474-CFA | ||||
| 4 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1343
Service Part Number:
DU2Z-14S411-ABA
Gauge:
12
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-750
- Motor - Engine Cooling Fan
