Connector End View (C1045) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1045 | INLINE | BK | 12A58115K867 | See Below | ||||

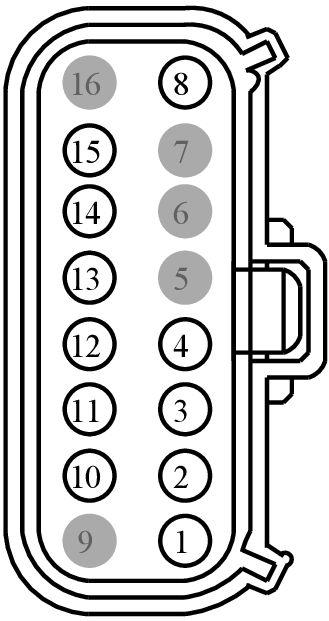

MALE
Harness
12A581

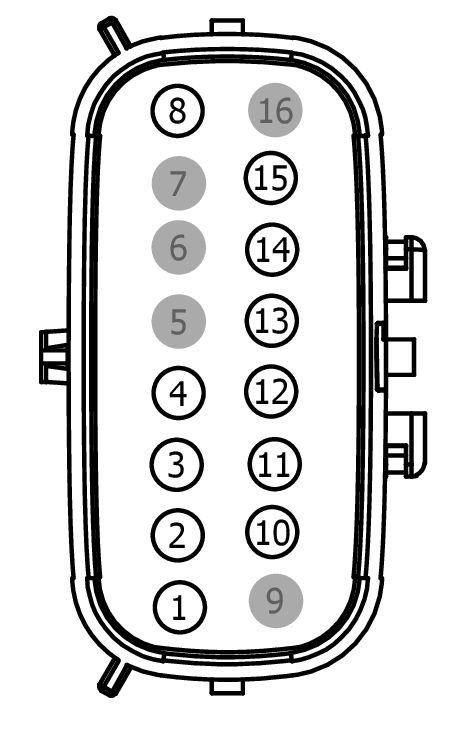

FEMALE
Harness
15K867
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VMF04 (BN-BU) | 22 | BU5T-14421-HA | |||
| 2 | VMF05 (GY-BU) | 22 | BU5T-14421-HA | |||
| 3 | * | * | N/A | |||
| 4 | * | * | N/A | |||
| 5 | * | * | N/A | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | GD131 (BK-GY) | 22 | BU5T-14421-HA | |||
| 9 | * | * | N/A | |||
| 10 | CBB13 (GY-BN) | 22 | BU5T-14421-HA | |||
| 11 | VE175 (BN-WH) | 22 | BU5T-14421-HA | |||
| 12 | CBK03 (GY) | 22 | BU5T-14421-HA | |||
| 13 | VE181 (WH-GN) | 22 | BU5T-14421-HA | |||
| 14 | CBK03 (GY) | 22 | BU5T-14421-HA | |||
| 15 | GD131 (BK-GY) | 22 | BU5T-14421-HA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VMF04 (BN-BU) | 22 | BU5T-14474-UA | |||
| 2 | VMF05 (GY-BU) | 22 | BU5T-14474-UA | |||
| 3 | CLF29 (BN) | 20 | BU5T-14474-UA | |||
| 4 | CLF34 (YE-OG) | 20 | BU5T-14474-UA | |||
| 5 | * | * | N/A | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | GD131 (BK-GY) | 22 | BU5T-14474-UA | |||
| 9 | * | * | N/A | |||
| 10 | CBB13 (GY-BN) | 22 | BU5T-14474-UA | |||
| 11 | VE175 (BN-WH) | 22 | BU5T-14474-UA | |||
| 12 | CBK03 (GY) | 20 | BU5T-14474-UA | |||
| 12 | CBK03 (GY) | 22 | BU5T-14474-UA | |||
| 13 | VDN06 (WH-GN) | 22 | BU5T-14474-UA | |||
| 13 | VE181 (WH-GN) | 20 | BU5T-14474-UA | |||
| 14 | CBK03 (GY) | 22 | BU5T-14474-UA | |||
| 15 | GD131 (BK-GY) | 20 | BU5T-14474-UA | |||
| 15 | GD131 (BK-GY) | 22 | BU5T-14474-UA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1599
Service Part Number:
EU2Z-14S411-VB
Gauge:
16
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
- Lamp - Park/Turn/Stop
- Mirror - Sideview
- Module - Heated Seat (driver)
- Module - Heated Seat (Passenger)
- Sensor - Knock
Pigtail Kit Part Number WPT-1279
Service Part Number:
CU2Z-14S411-ADA
Gauge:
16
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Lamp - Headlamp - High/Low Beam
- Mating Connector WPT-1404
- Module - Heated Seat (driver)
- Module - Transfer Case Shift Control
